Sampling Solutions
For the Energy Industry
Proserv provides cutting-edge technologies to our customers to support the entire lifecycle of an asset, improving reliability, optimising performance and extending the life of critical infrastructure. By combining our technical skill with our engineering, manufacturing and field service expertise, we create innovative, industry-leading solutions that are solution orientated and simplistic by design. From reservoir to refinery, Proserv specialises in the provision of sampling solutions throughout the life of field. We support our clients throughout all stages of the sampling process including Design, Manufacturing, Certification, Aftermarket support and Training. Over 40 years’ experience providing engineering, manufacturing and service
+60,000 Sample cylinders DOT, PED, TPED, TC and AS certified for transportation +850 Downhole sampling Single phase and multiphase options +10 Subsea sampling Diver and ROV operated, isobaric and isothermal capabilities +1,000 Topside sampling Automated, manual, inline, fastloop and solid filtration units +850 Downhole samplers Single phase and multiphase options +60,000 Sampling cylinders DOT, PED, TPED, TC and AS certified for transportation +10 Subsea sampling systems Diver and ROV operated, isobaric and isothermal capabilities +1,000 Fluid sampling systems Automated, manual, inline, fastloop and solid filtration units +2,000 Chemical injection systems Air driven, electric, solar powered skids, SMART management
Sampling Solutions Sampling Solutions Sampling can be classified as the ‘introduction of a controlled leak’ from a system. The benefits of a representative sample include safety of personnel and asset, correct field development evaluation, maintaining flow assurance, accurate metering and allocation and ensuring good environmental management. Proserv support the science of sampling through the provision of an appropriate engineered solution to capture and contain the chemistry. Find out more on our cylinder technology and track records in our latest interactive brochure

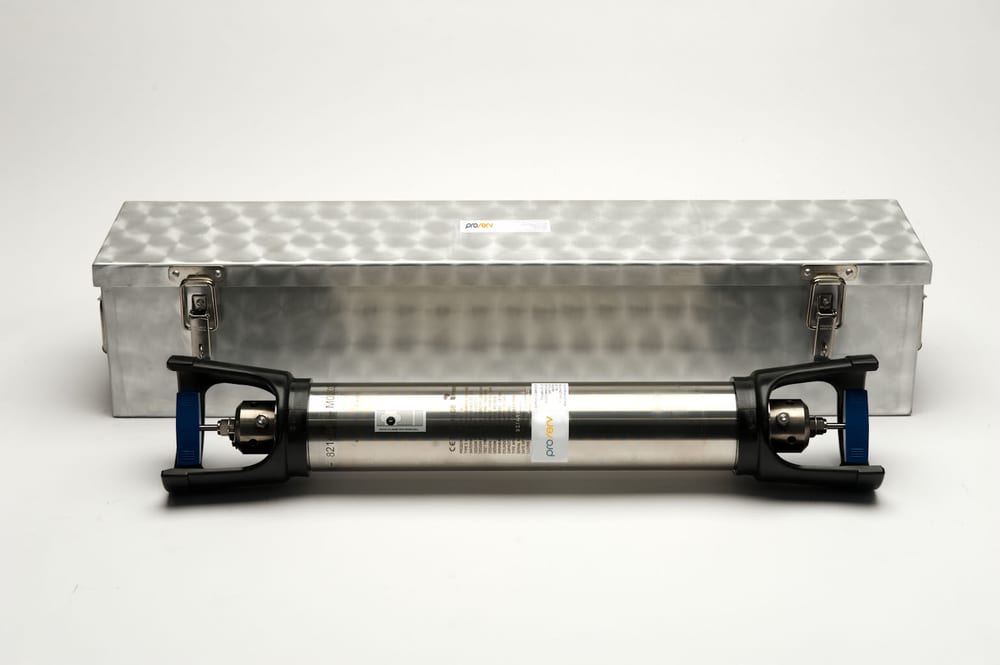

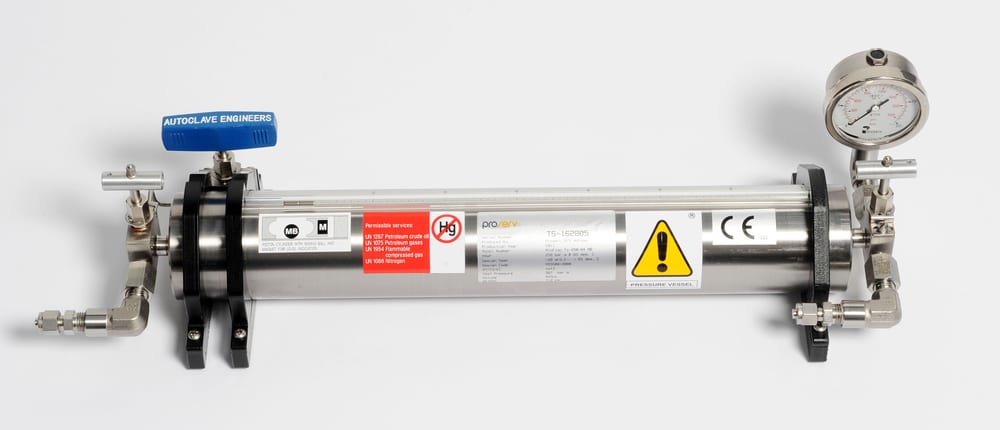

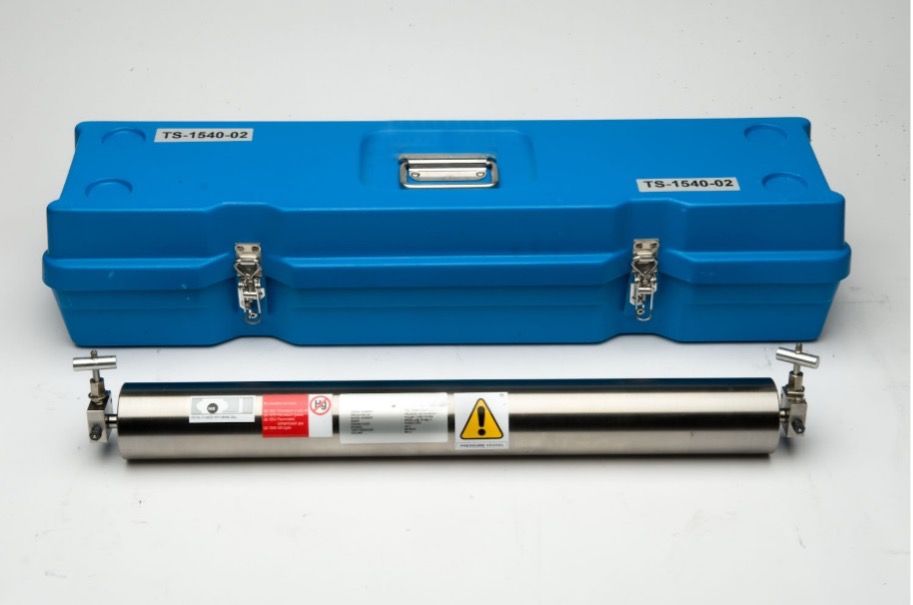

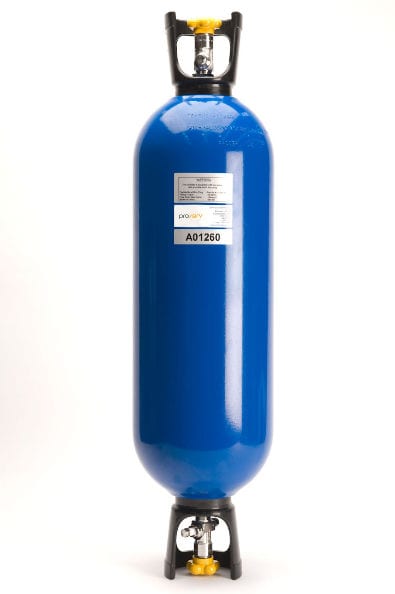

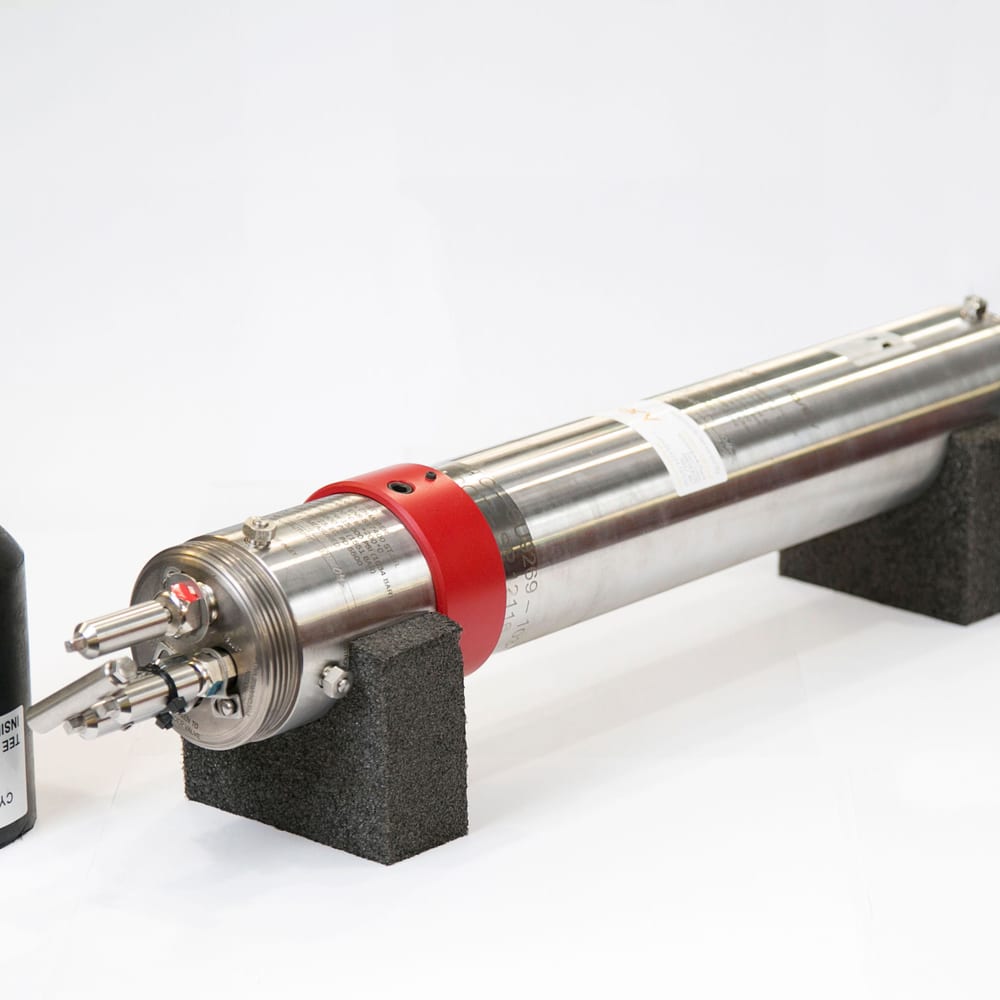

Sample Cylinders A Sample Cylinder is at the heart of all pressurised sampling operations and the design, manufacture and application of use is critical to ensure sample representivity is maintained and transported safely. For over 40 years Proserv has successfully supplied thousands of Constant Pressure Sample Cylinder’s into the Energy market including National and International Energy Companies, Service and Support Companies, Laboratories, Universities, Research and Technology Centres. Utilising our experience and capabilities in design and manufacture we incorporate the Pressurised Sample Cylinder’s into Sampling Solutions supporting Downhole, Subsea and Topside Sampling.
  • In house design, manufacture & testing

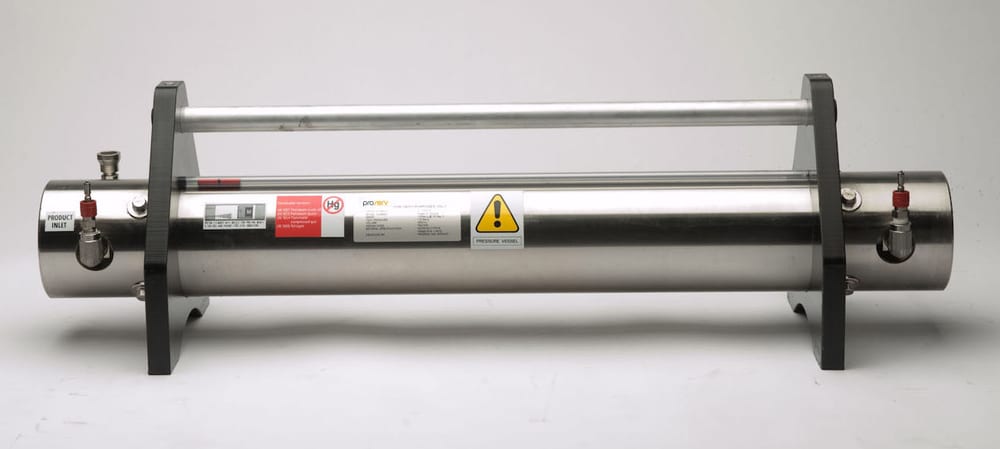

  • Constant pressure piston and flow through cylinders
  • Conventional and Single Phase piston cylinders
  • Wide range of cylinders suitable for exploration, subsea or topside sampling applications
  • Transportation certification available:
  • Department of Transport USA (DOT)
  • Pressure Equipment Directive (PED)
  • Transportable Pressure Equipment Directive (TPED)
  • Transport Canada (TC)
  • Australian Standards (AS)
    •
  • Severe service corrosion resistant materials
  • Inert coatings
    • See the full range of Production, Exploration and Subsea Sampling Cylinders: View our Sampling Cylinder Catalogue
    Downhole Sampling Proserv’s Downhole Sampling Capabilities include design, manufacture and in-field support for deploying sampling equipment by wireline, drill stem test (DST) or coil tubing to safely capture, contain and transport samples up to 15,000 psi and 180ºC
    Read more
    Subsea Sampling Proserv’s Subsea Sampling Capabilities include design, manufacture and in-field support for deploying Wired-To-Seabed / ROV Underslung / Diver subsea sampling equipment to safely capture, contain and transport samples from the seabed and / or subsea production systems at water depths of up to 3,000metres and 20,000 psi and 180ºC
    Read more
    Topside Sampling Proserv’s Topside Sampling Capabilities include design, manufacture and in-field support for deploying bespoke and / or standard sampling equipment to safely capture, contain and transport samples taken from wellheads and process / production systems both onshore and offshore at pressures of up 20,000psi and 180ºC
    Read more
    Downhole Sampling High Quality Samples in the Field Proserv specialises in bottom hole sampling which supports evaluation and appraisal of a reservoir. Samples are captured in the field, transferred to shipping cylinders, and transported to the laboratory where chemical and physical properties can be measured and determined. This process needs careful management throughout to ensure sample integrity, operator safety, and environmental and legal compliance. Once analysed, the samples provide data vital for the economic and technical evaluation of the reservoir.

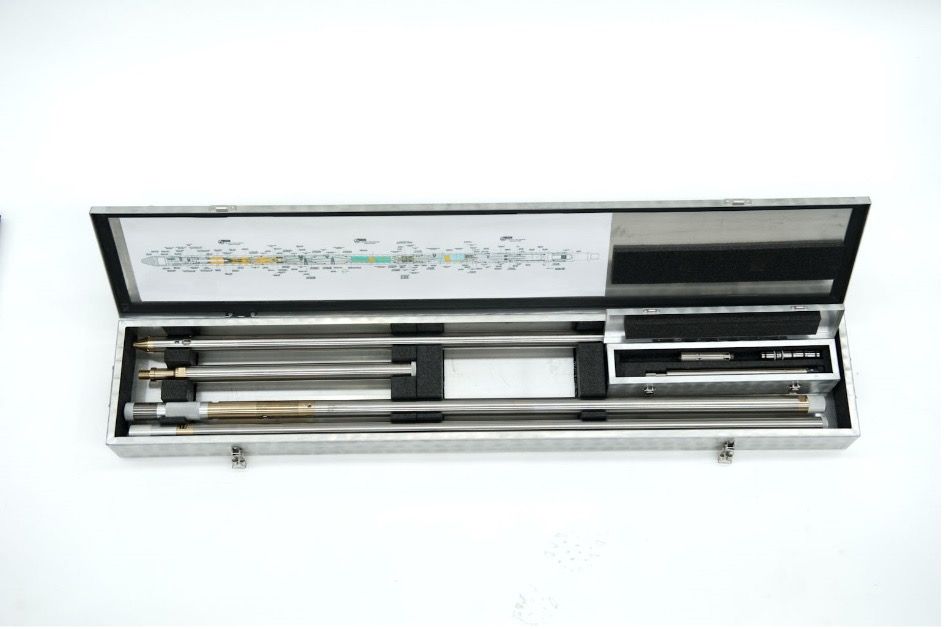

    Downhole Sampling Tools and Equipment Proserv offers a range of downhole sampling tools and supporting equipment to capture fluid samples from within the well bore. This equipment can be used to capture reservoir samples during exploration or production stages and can also be used to help sample storage vessels during decommissioning of platforms and tanks. Bottom-hole sampling tools are available in standard or exotic materials for use in harsh environments and can also be supplied with non-reactive coatings if required. Positive Displacement and Single Phase Sampler The positive displacement sampler (PDS) allows for the capture and isolation of conventional downhole reservoir fluid samples. The single phase sampler (SPS) captures, isolates, and maintains the samples at a pressure above reservoir conditions, for analysis back at the laboratory. Sampler conveyance is run on slickline, wireline, coil tubing or pipe and is operated via traditional mechanical clock or third party acoustic triggers when run as part of a drill stem test string. Cylinders For the transportation of samples, a range of conventional or single phase piston cylinders can be supplied, 700 cc volume as standard with pressure ratings of 10,000 psi and 15,000 psi. Cylinders are supplied with transportation boxes for safe shipment complete with European PED, TPED, United States (DOT) & Transport Canada (TC) certification as required. Features and Benefits
  • Fast sample transfer
  • Fast redress of sampler
  • Mercury free sample transfer
  • Positive locking and operation indicator
  • Available in Inconel for hostile environments
  • Multiple samplers can be run simultaneously
  • Controlled sampling by positive displacement
  • Non-reactive coating available to minimise H2S losses
  • Proven design with many years of successful operation

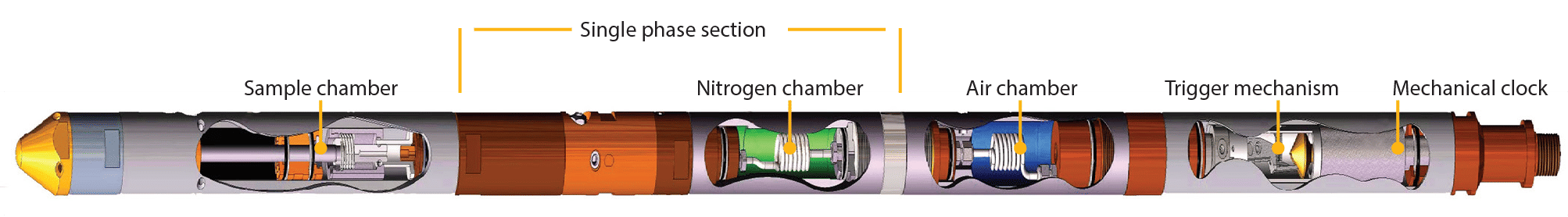

  • Samples can be retrieved and transferred in single phase
    •
    Operation Parameters
    Sample volume 600 ml
    Maximum working pressure 15,000 psi at 180°C 356°F
    Length PDS 3,680 mm
    SPS 5,054 mm    		 12'1"
    16'7"
    Weight PDS 28 kg
    SPS 34 kg    		 61.6 lb
    74.8 lb
    Outside diameter 43 mm 1 11/16"
    Material 17-4PH stainless steel (AISI 630)
    aluminium bronze CA 104

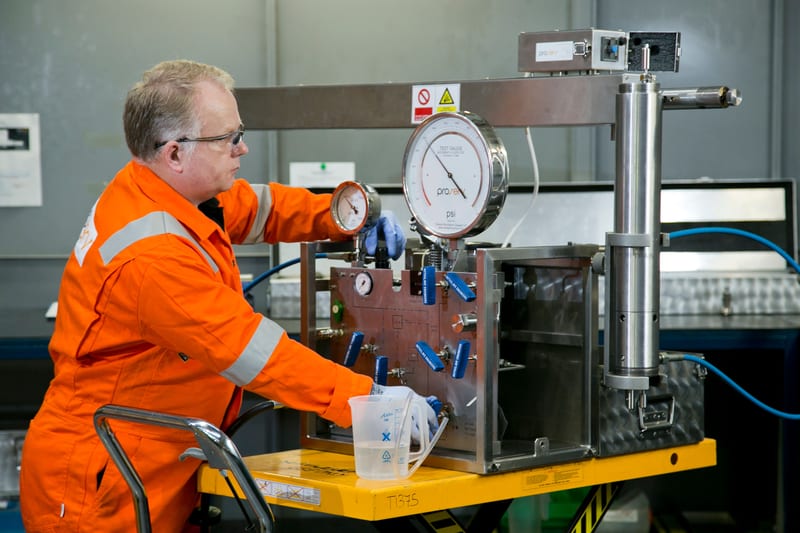

    Field Services and Training
    Field Services Proserv has extended our downhole sampling services to provide customers with sampling engineers to operate samplers in the field if required. Engineers can be mobilised from various locations worldwide and our clients benefit from the superior level of professionalism, technical ability, and performance provided.
    Training Training packages can be provided on the operation and servicing of the Proserv downhole sampling equipment, either at a Proserv location or at the customer's facility if required. Comprehensive training schools have been developed to ensure sampling engineers have the correct technical and practical skills to ensure successful operation of our equipment.

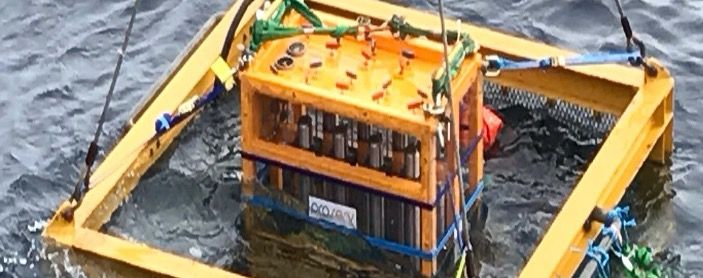

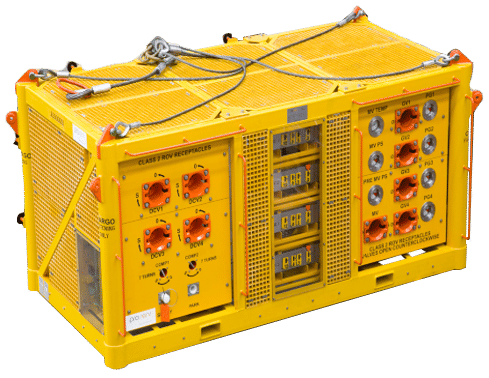

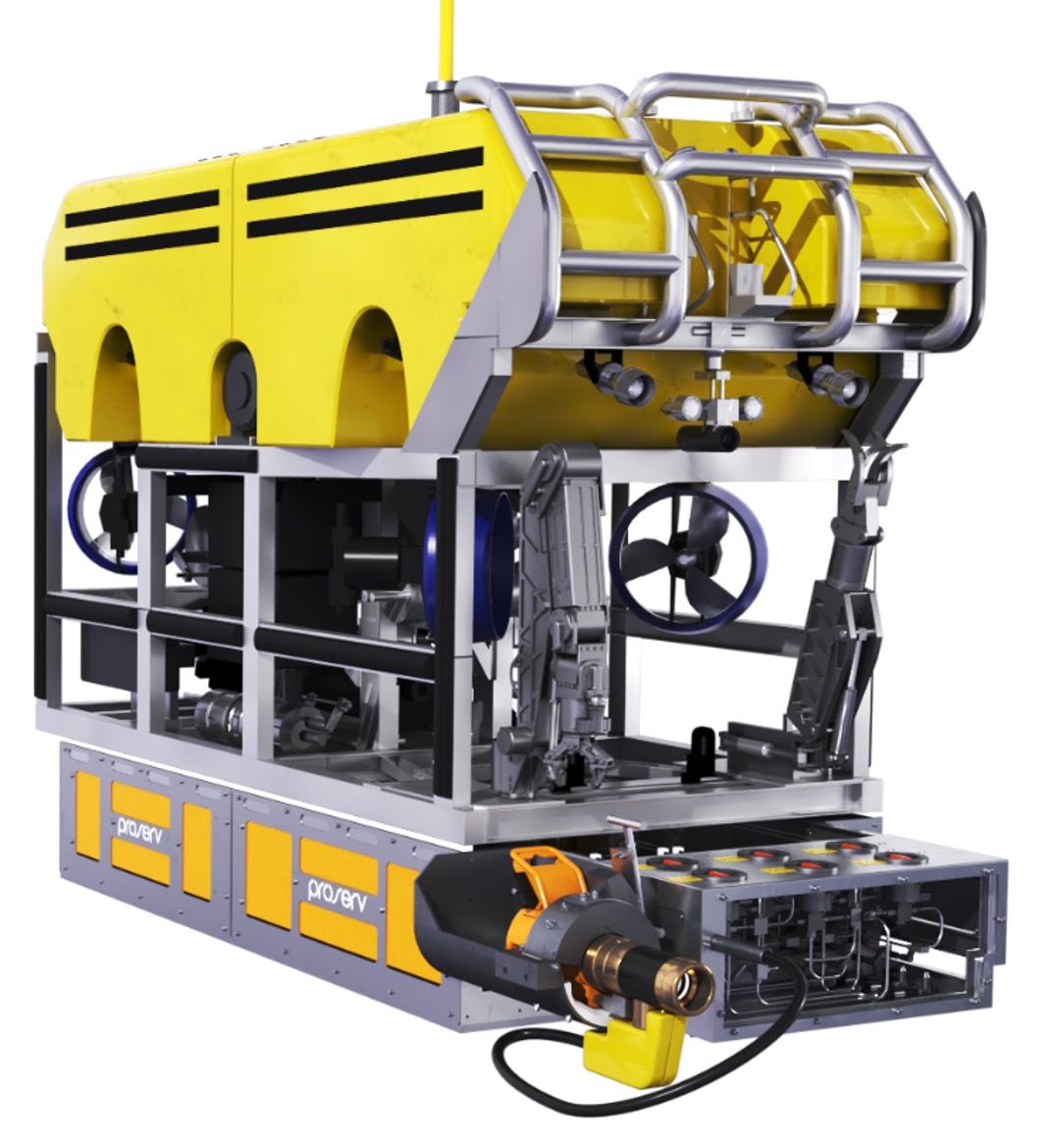

    Subsea Sampling Production Maximisation A key objective for any operator is ensuring production maximisation is achieved with as little upset as possible. Subsea sampling supports this by providing accurate, at source, production chemistry. Knowing the chemistry of fluids and solids inside the pipeline allows you to calibrate subsea multi-phase flow meters, assists in efforts to reduce production losses and supports the unrestricted flow of fluids from reservoir to refinery. Proserv has been engineering and designing equipment for subsea sampling for over 15 years.
    500+ samples safely captured and contained Suitable for up to 2,500 metres water depth DOT/PED certified cylinders Can withstand up to 20,000 psi 500+ samples safely captured and contained Suitable for up to 2,500 metres water depth DOT/PED certified cylinders Can withstand up to 20,000 psi
    Proserv works in partnership with clients to design, build, maintain and operate a range of subsea sampling systems to allow for representative subsea sampling. Designed to meet the stringent requirements of NACE, API-6A and API-17D, Proserv’s subsea sampling system specification can be customized according to the client’s specific needs. Rented or Purchased Solutions Our subsea sampling rental units are available for rapid deployment. We ensure you get the right sample from the right place with the right equipment. Subsea sampling systems support:
  • Integrity
  • Umbilical controls
  • Decommissioning
  • Chemical injection
  • Flow assurance issues
  • Metering and allocation
  • Minimising production deferment
  • Maximising economic recovery
    •      With expertise in engineering and production chemistry, we understand all aspects of subsea sampling.
  • Slops handling
  • Sample collection cylinders
  • System control and sensors
  • Isothermal and isobaric sampling
  • Phase biased sampling and enrichment
  • System deployment, connection and disconnection
    •      Subsea Sampling Cylinder Specifications
    Proserv’s subsea sampling cylinder offering includes
    Volume up to 2 litres
    Design pressure 1,379 bar
    Design temperature -29ºC to 177ºC
    Single phase Yes
    Multi-phase Yes
    Sour service Yes
    Certification PED / DOT
    API 17D hyperbaric test 3,000 m
    Specification ROV Diver
    Volume (per run) 12 litres 12 litres
    Design pressure 1,379 bar 690 bar
    Design temperature -20°C to 110°C -20°C to 110°C
    Isothermal Yes Yes
    Isobaric Yes Yes
    Chemical injection Yes Yes
    Slops containment Yes Yes
    Sour service Yes Yes
    Connection Hot stab Any
    Operational Benefits of Subsea Sampling
  • Easier to obtain a chemical-free sample
  • Improved modelling of system dynamics
  • Eradicates necessity for production losses
  • Nearer to source of fluids without expense of well intervention
  • Undiluted, a more representative sample, less doubt over validity of results
  • Reduces the need for back-out calculations and second-guessing flow rates
  • Potentially upstream of deposition, therefore provides a sample in ideal condition
    •
  • Reduces environmental risks of release to sea
  • Provides reassurance regarding monitoring of system condition
  • Increases confidence in control fluid and umbilical condition
    •
  • Removes the potential of working on the wrong solution
  • Production uptime is sustained for longer, resulting in increased revenue
  • Better data leads to improved reservoir management and production maximisation
    •

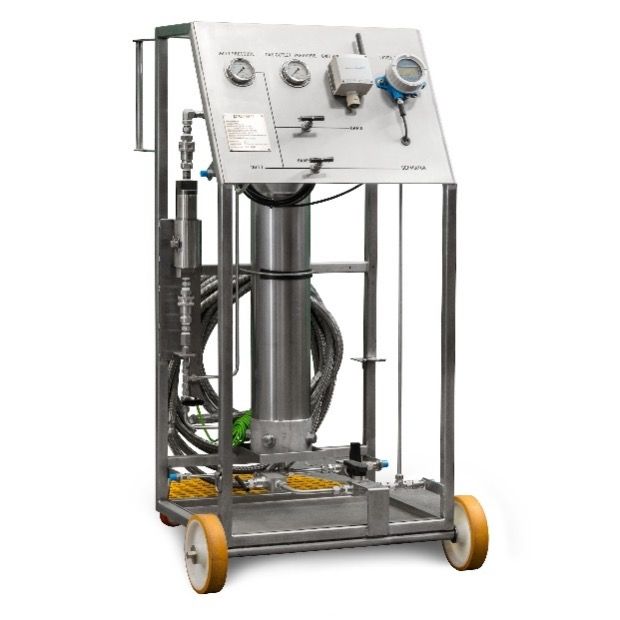

    Topside Sampling Proserv have extensive knowledge in the design and manufacture of topside sampling systems which are used to help monitor production and maximise economic recovery throughout the lifetime of the field PhaseCatcher The Proserv designed, built and patented PhaseCatcher can measure individual phase volumes while safely capturing and containing multiphase samples in a constant pressure cylinder at flowline temperature and pressure. At site, while maintaining flowline pressure & temperature, the PhaseCatcher multiphase sample system is ideal for supporting calibration / validation of multiphase flowmeters.
  • It is now possible to make some multiphase flowmeters less dependent on PVT data and measure the actual properties of the produced fluids at site
  • Trap a single phase under pressure & temperature line conditions, and measuring various properties, for example density, permittivity. Also subsample for further compositional data and recombination of phases
  • Measuring the phase volumes trapped under pressure & temperature line conditions, alter said conditions and then repeat measurement of volumes in same system, to provide a potential shrinkage of the liquids, GVF, indication of gas carry-under etc

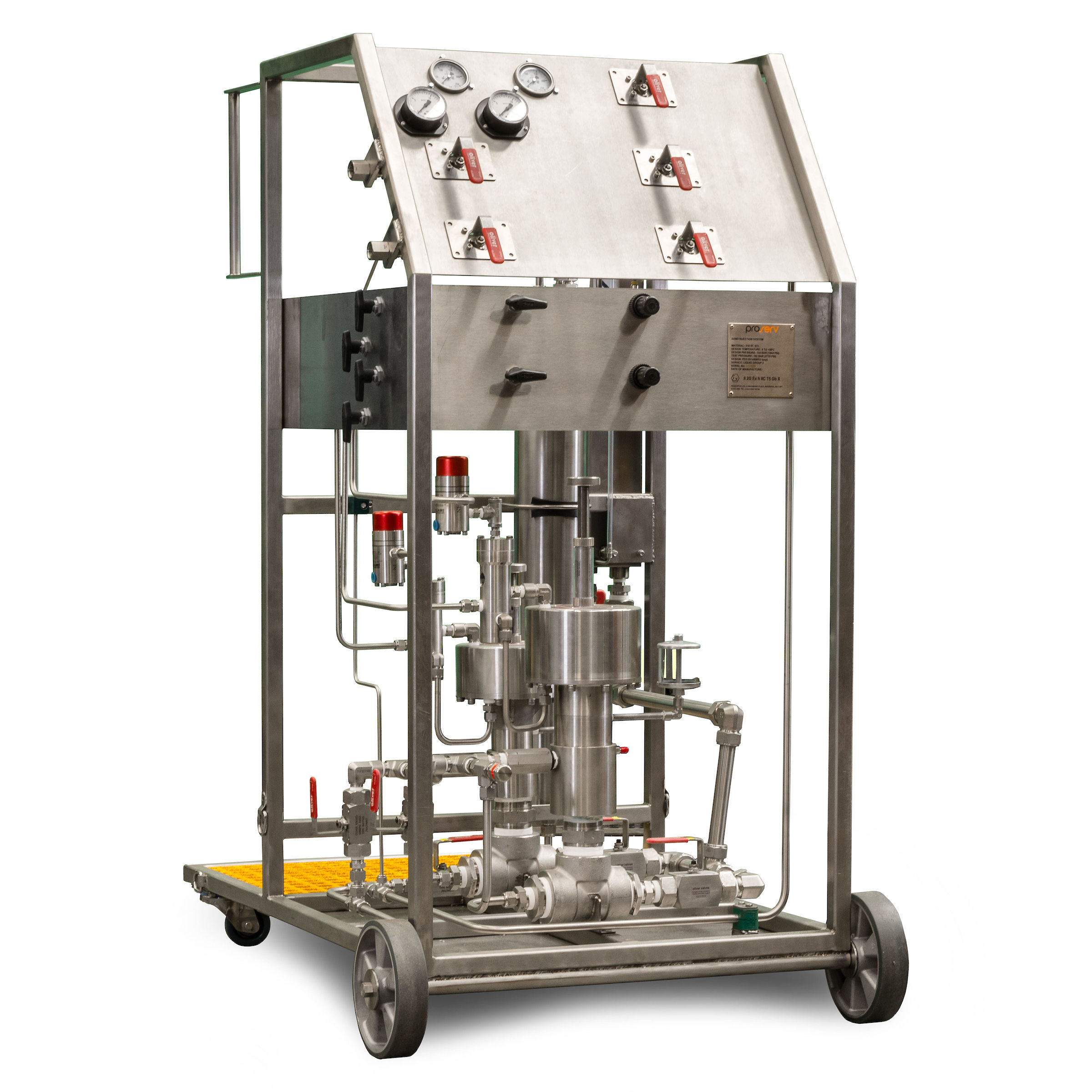

    •      Multiphase Sampling for Production Optimisation A compact solution for subsea tiebacks Proven by extended live testing, Proserv’s innovative multiphase sampling system replicates a production test separator’s sampling conditions providing like-for-like samples. Proserv offers a compact, lightweight and cost efficient alternative to routing individual wells to the bulk production test separator which can result in production losses, or when a test separator is not available for use. Multiphase Samples with No Loss of Phase
  • Enhance visibility of flow assurance issues, allowing for quicker intervention
  • Enable monitoring by providing continuous representative samples
  • Improve allocation with accurate samples for increased profitability
  • Save space and weight on a crowded platform with this small footprint solution
  • Take representative samples with confidence at conditions equivalent to a bulk production test separator

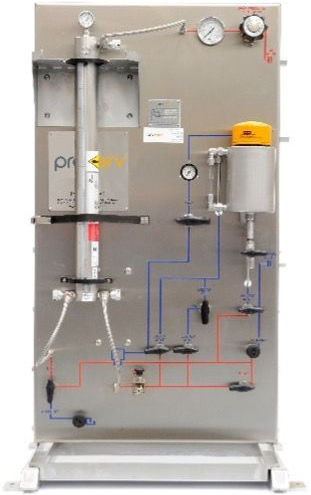

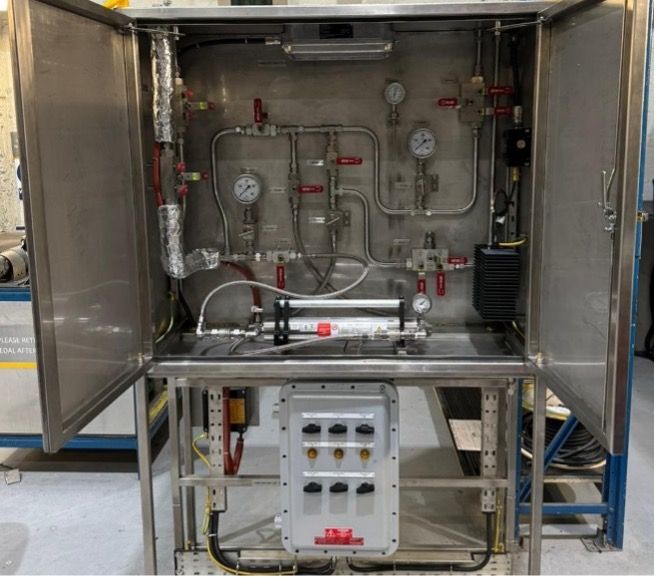

    •      Manual Sampling Stations Manual sampling stations allow produced fluid to be safely sampled via purpose built portable trolleys or fixed panels. Samples can be collected into appropriate transportation cylinders where required. e.g. flare, fuel, export gas, separator liquid, produced water, export pipeline fluids. ProMix Homogenisation / Conditioning Systems For allocation transfer purposes, water in oil analysis is a very critical parameter to be measured. The Proserv ProMix conditioning systems are designed for mixing/homogenising hydrocarbon samples which have been collected over a long period of time prior to analysis e.g. water in oil. A sample taken at any sample point into a ProMix cylinder may be stored, or brought directly to the laboratory for immediate homogenising and analysis. The system allows the contents of the sample cylinder to be mixed at the sample collection line pressure thus ensuring analysis sub sample representivity and retention of light ends. Mini – Separator Sampling Systems Proserv’s mini-separator systems allow you to safely and consistently sample wellhead and flowlines upstream of 1st stage separator for water chemistry, sand / solids and hydrocarbon composition. Closed loop systems ensure the operator is not exposed to toxic and flammable gases where previously samples would have been taken into fixed volume open top containers.
  • Portable or fixed systems
  • Enclosed sampling
  • Guided wave radar level control
  • Materials to suit a range of operating environments
  • Optional equipment, sand / solids filters, wet gas flowmeter,H2S monitor etc
    •      Sand and Solids Sampling Systems When hydrocarbons are produced from unconsolidated reservoirs, sand production can lead to erosion and blockages in flowlines and other production equipment. Sand management techniques allow the operator to maximise and maintain production while managing sand at acceptable rates and maintaining the integrity of their assets. Proserv can design, manufacture and supply a range of tools and equipment to monitor and quantify the level of sand being produced at given production conditions. You can’t manage what you can’t monitor Sand sampling filtration systems:
  • Subsea sand sampling
  • Hand-held sand sampling filtration units
  • Topside low and high pressure sand sampling trolleys
  • Produced water / injection water sand sampling panels
    •      Acoustic Sand Detector Verification Optimising the effectiveness of Acoustic Sand Monitoring systems used to quantify produced solids from wells is vitally important to mitigate the risk of erosion and solids deposition within pipelines and topside. Proserv’s portable sand injection system allows for the safe displacment of a known volume of gel containing a set concentration of sand into the process system.
  • Improved Acoustic Sand Detector accuracy.
  • Detectors provide reliable and quantifiable sand rate value based on specific flowing characteristics of each well.
  • Increased well production while maintaining solids production at safe levels.
  • Topside or subsea deployable systems.
    •  Eliminate uncertainty on data accuracy from acoustic sand monitoring instruments with onsite calibration to increase well production with confidence.
    EQUIPMENT RENTAL, SERVICES AND RECERTIFICATION EQUIPMENT RENTAL, SERVICES AND RECERTIFICATION The Complete Sampling Solution Our expertise is founded on our broad technical knowledge, extensive in-house engineering and production chemistry experience. Our service extends beyond the design and manufacture of equipment into rental and maintenance support for our clients across the globe. Service & Recertification Proserv can arrange servicing programmes with cleaning, O ring redress, assembly and pressure testing at planned intervals as well as provide independent inspection and recertification to meet statutory requirements. Proserv are qualified to provide recertification of our products in accordance with DOT, TC, PED, TPED where applicable. Sampling service centres are located in Aberdeen, Stavanger, Houston, & Abu Dhabi. Click into Learn More About our Rental Options
    At Proserv, we are committed to delivering an innovative range of solutions and services than enhance operational efficiency and productivity for clients worldwide. With a track record spanning over 40 years, our experienced teams can offer hire agreements from locations in UK, North America, Norway, Middle East & Malaysia. Our Rental Fleet Proserv offers an extensive inventory of rental equipment suitable for exploration, production or subsea sampling applications. During periods of high sampling activity or perhaps when sampling equipment is out with serviceable operation, we can provide rental equipment on a per day basis. Equipment is available from our facilities at short notice and can be delivered to various destinations worldwide.
    The benefits
  • Avoids up-front costs / CAPEX
  • No maintenance costs
  • Mobilisation at short notice
  • Equipment fully serviced and certified
  • Equipment availability to cover multiple applications / specific project requirements
    •
    Sample Cylinders A range of flow through, conventional and single phase piston sample cylinders suitable for Downhole, Subsea and Topside sampling as well as laboratory testing applications.
    Downhole Sampling Conventional (PDS) and Single-Phase (SPS) downhole sampling tools, transfer benches, nitrogen gas boosters and supporting equipment suitable for cased hole reservoir sampling.
    Subsea Sampling Wired, ROV underslung and diver operated subsea sampling systems to capture production or weeps and seeps samples at depths up to 3,000m.
    Topside Sampling Wellhead, process / production sampling systems including mini separators, ProTrolley portable gas or liquid automated sampling units, ProMix homogenising benches, sand / solids sampling equipment and separator sampling manifolds.
    To discuss your equipment rental requirements, please contact Proserv sampling@proserv.com
    Why Proserv
    It is more important to know what sort of sample has a result... than to know what sort of result a sample has. Proserv has a great deal of experience overcoming the challenges inherent to sampling. At the core of our offering, is our passion for solving problems and finding new, more efficient and more effective ways for our clients to operate. Proserv offers a unique Sampling position
  • Equipment – Rent and Purchase options
  • Experience – Reservoir to Refinery, +40 years
  • Engineering – Design, manufacture, assemble and service
  • Capabilities – Engineering, Sampling and Chemistry support
  • Independent – Work with companies to offer freedom of choice
    •

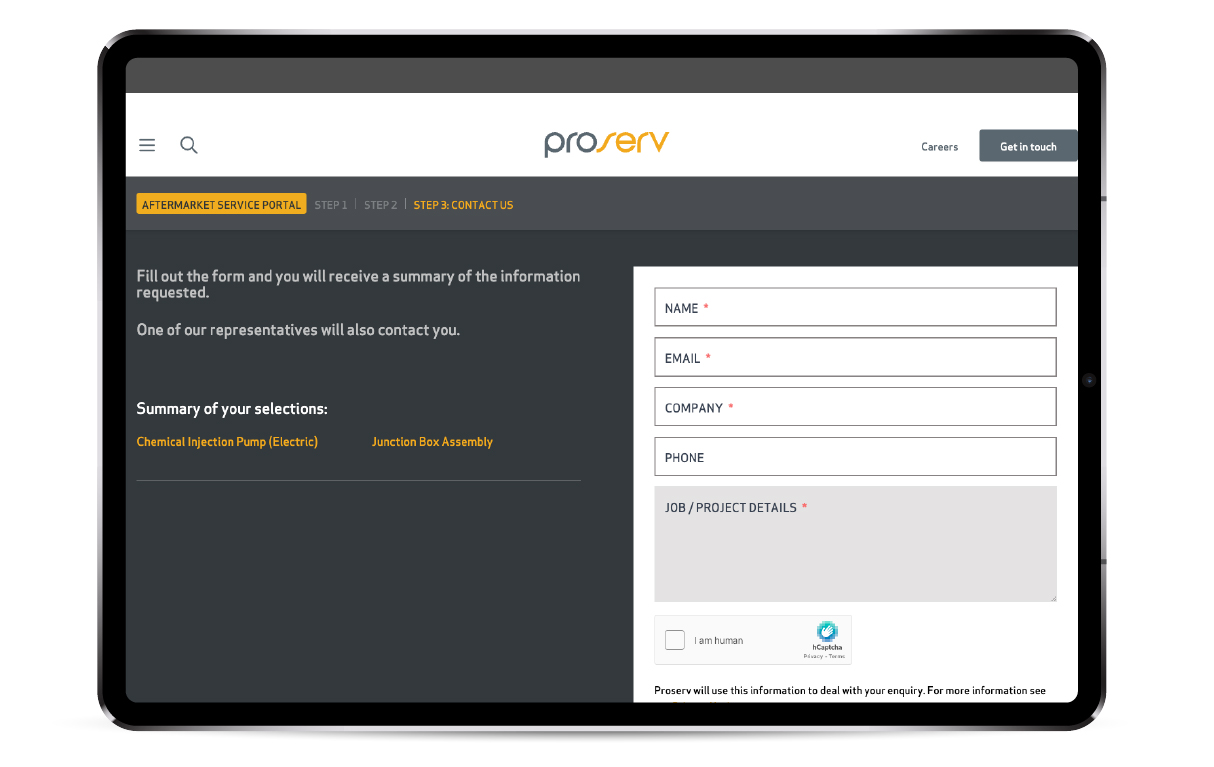

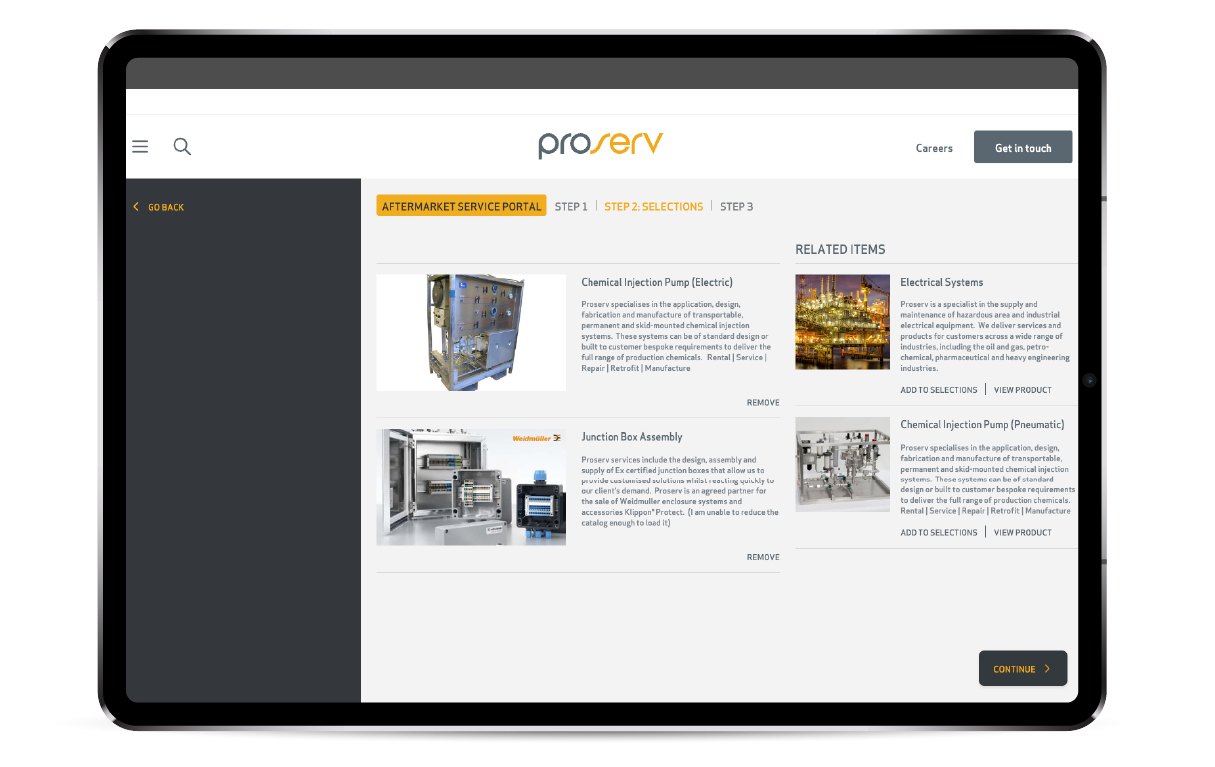

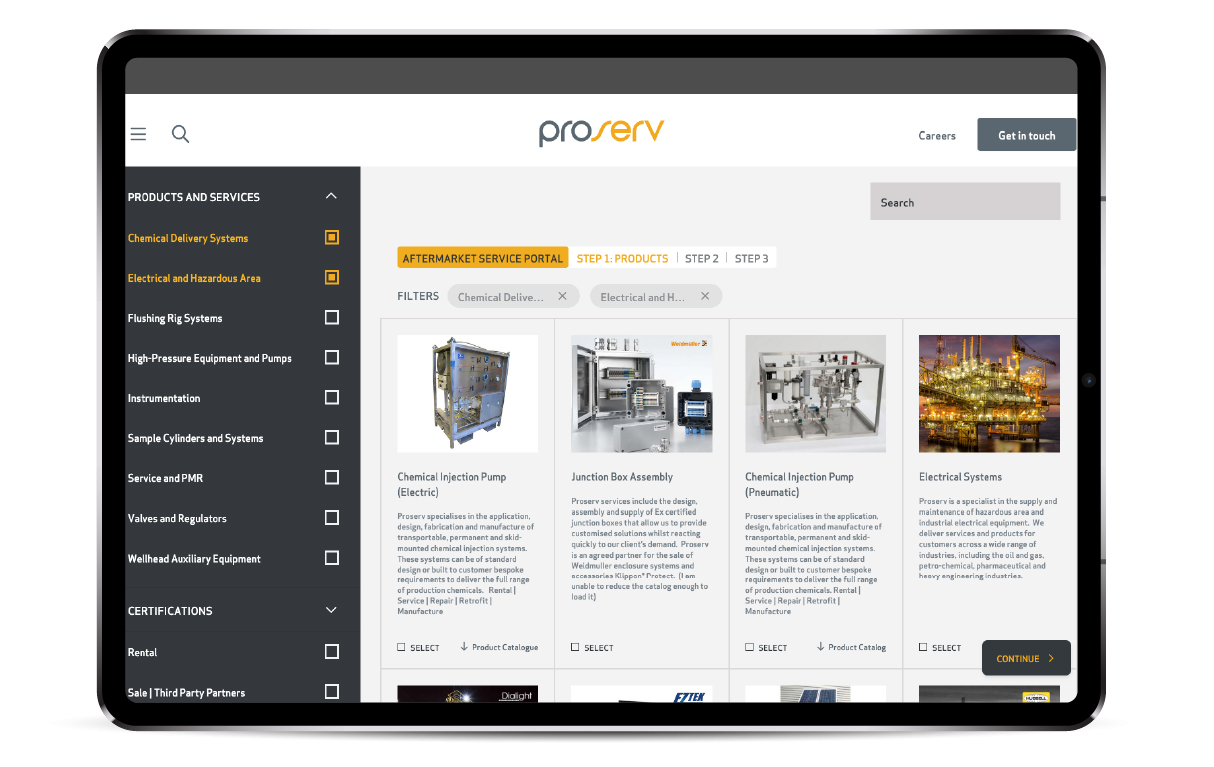

    Aftermarket Service Portal DELIVERING AGILITY AND GREATER EFFICIENCIES The Aftermarket Service Portal gives customers immediate access to specific, brochures and specification sheets, requests for quotes are easily built and uploaded to the relevant local contact. Sampling equipment is divided into five sections, Downhole Sampling, Exploration Cylinders, Production Sampling, Production Cylinders and Subsea Sampling Systems to allow customers to find specific equipment of interest quickly. Working With You Around The World Proserv’s global footprint means a Proserv facility or distributor is never far away and will be able to support your requirements. Visit our aftermarket services portal to view our range of Exploration, Production and Subsea sampling equipment for sale or rental with fast delivery worldwide. Visit the Portal
    Case Studies
    Sample Cylinders The client needed a large quantity of certified for transport, high pressure, severe service piston sample cylinders, inert coated in a short time frame.
    Read more
    'In house manufacturing, assembly and hydrotesting capability' Case Study: Sample Cylinders The Challenge Supply large quantity of certified for transport, high pressure, severe service piston sample cylinders, inert coated in a short time frame. The Response Proserv’s in house manufacturing, assembly and hydrotesting capability was utilised along with our stock of raw material to react quickly to the customers project schedule and allow manufacture of a standard severe service cylinder model to commence straight after contract award. The Result Certified piston sample cylinders were delivered in batches to meet customers well testing schedule. Cylinders were Department for Transport USA (DOT) certified for transportation of oilfield hydrocarbon samples as well as SilcoNert 2000 inert coated to reduce absorption of low level H2S resulting in more accurate sample analysis. Cylinders were manufactured from Inconel 725 NACE compliant material suitable for severe service applications.
    Subsea Sampling Safely and effectively capture multiphase fluids from the Subsea production infrastructure in water depths of up to 2,200m.
    Read more
    ‘The sampling stage is critical in understanding exactly what is being produced’ Case Study: Subsea Sampling The Challenge Safely and effectively capture multiphase fluids from the Subsea production infrastructure in water depths of up to 2,200m. The samples were need to support calibration and validation of the subsea Multiphase Flowmeters and monitoring scale squeeze returns through the provision of individual well samples for production chemistry analysis. The Response A team of technical specialists at Proserv developed the Wired-To-Seabed system which would allow for large sample and slop volumes to be taken. Meeting various industry specifications, for example NACE, NORSOK, DNV, API , the system was also designed to safely meeting the harsh environments that could be expected including 2,500m water depth, 510 bar absolute, and 88 Deg C. The Result A large volume system was developed that could captures up to 24 Litres of Slops and 24 Litres of sample fluids. Its benefits include:
  • Improved safety, reduced risks utilising cylinders suitable for use subsea.
  • Removed potential of calibration / allocation error and associated reservoir mis-management.
  • Improved reservoir management with samples directly from each well, with no impact on production.
  • Large Volumes allowed for additional chemistry / chemical testing and optimisation of production chemicals.
    •
    Topside Sampling Simplifying the process of sampling water, oil, gas and solids – and reducing risks to people, the environment and offshore assets.
    Read more
    ‘The use of the Mini-Separator System… enhances safety, saves time and improves on current market products’ Case Study: Topside Sampling The Challenge Simplifying the process of sampling water, oil, gas and solids – and reducing risks to people, the environment and offshore assets. The established methods for sampling on assets pose several issues, ranging from the potential release of gas to the deployment of multiple containers, and the need for operators to use breathing apparatus. The Response A team of technical specialists at Proserv developed the Mini-Separator system as a new sampling solution which addresses these operational issues. Built to meet NACE standards, the system is designed to separate fluids and capture sand/solids as well as sample oil, water and gas. It can also ‘see’ the liquid split with its Guided Wave Radar (GWR) level device. This prevents the need for time-consuming lab work, separating out fluids and equipment cleaning processes. The GWR is the centre-piece innovation of the system, applying advanced technology to elevate performance in this specialist area. The Result The use of the Mini-Separator system, instead of an atmospheric container, for sampling at risers and wellheads, enhances safety, saves time and improves on current market products. Its benefits include:
  • a reduction in exposure to toxic gases
  • less requirement for isolation of gas heads
  • time savings in the sampling of slugging wells or wells with high gas/oil ratio
  • less manual handling when taking larger volumes of liquids for more representative sand sampling
    •

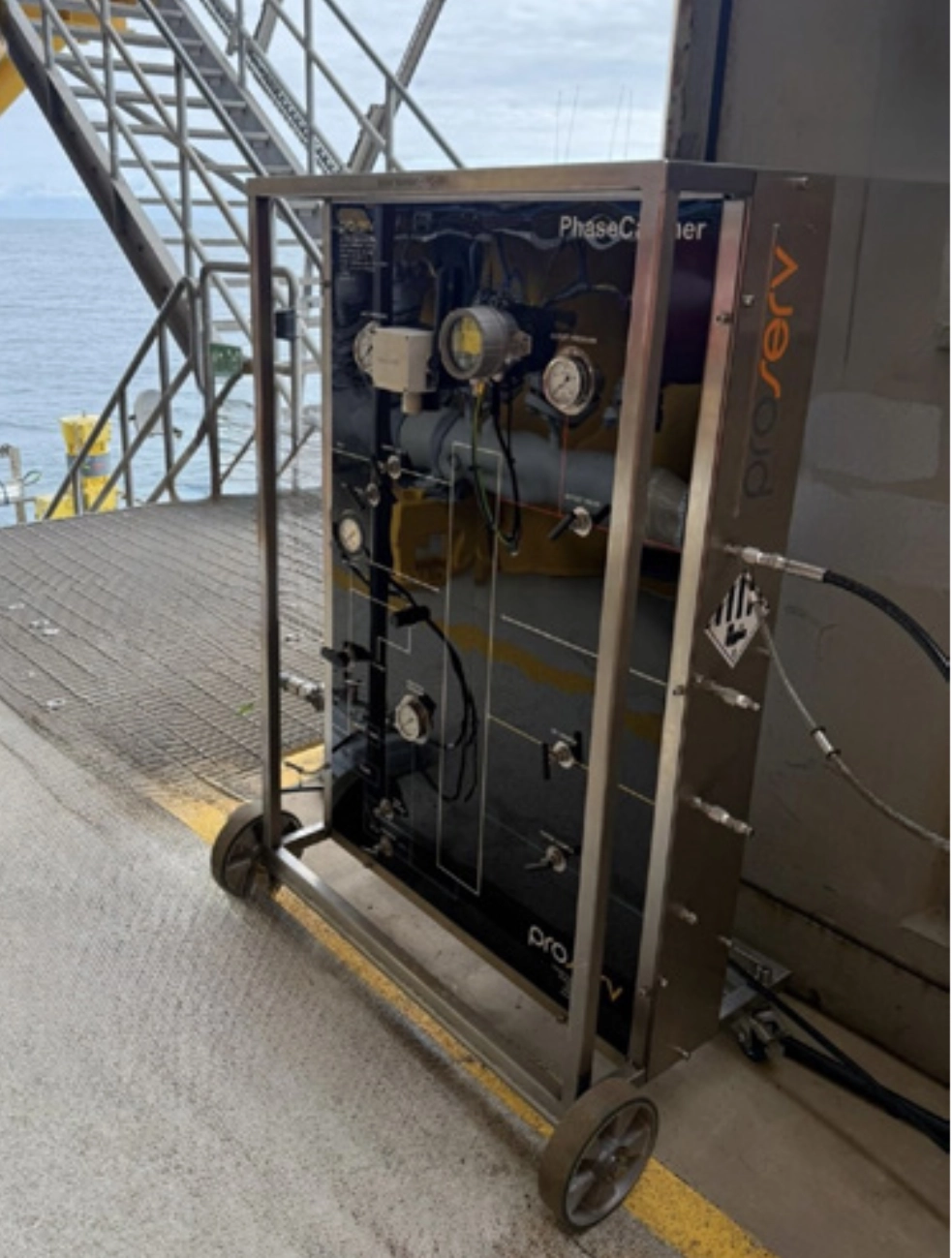

    Multiphase Sampling to Resolve Production Restriction Proserv’s PhaseCatcher successfully enabled safe, regulatory-compliant, high-pressure sampling, providing the operator with the essential data required to de-risk production decisions
    Read more
    'Multiphase sampling to resolve production restriction' Case Study: Multiphase Sampling Client UK North Sea Oil Company Equipment PhaseCatcher Multiphase Sampling Solution Project Background A UK North Sea Oil Company was facing significant production and reservoir management restrictions due to an unclarified liquid loading issue. Existing infrastructure constraints, pipeline operating parameters, and limitations at the receiving terminal meant production was severely restricted until the exact composition of the downhole liquids could be confirmed and treated accordingly. The Challenge Conventional sampling methods were impossible due to a combination of factors, including high sample pressure (approx. 100 bar), a high Gas-Oil Ratio (GOR), limitations on hydrocarbon venting, and non-ideal sample point locations. The key operational challenge was the uncertainty surrounding the liquid’s source: was it high-value hydrocarbon condensate, or low-value water (formation, condensed or seawater)? The Solution Proserv was engaged to deploy its patented PhaseCatcher technology. The 2 litre NACE PhaseCatcher, a mobile multiphase sampling unit, was used to capture representative fluid from the challenging 12 o’clock position on a multiphase flowline downstream of the production choke. The PhaseCatcher system’s design addressed the core challenges:
  • Phase Identification: Equipped with Guided Wave Radar Technology, it provided immediate, high-confidence determination of individual phase levels and volumes, confirming a sufficient liquid sample had been collected for analysis.
  • Closed-Loop Safety: A backpressure floating piston cylinder maintained initial sample pressure and uniquely allowed for the displacement of excess fluids (gas and/or liquid) back to the process. This ensured a closed-loop sampling approach, eliminating the need for venting and drastically minimising operator exposure to hazardous fluids while enabling collection at either flowline or atmospheric conditions.
    •  The Result The initial sampling campaign delivered a crucial breakthrough:
  • Well 1 Success: A critical, small volume of liquid was successfully captured and identified as hydrocarbon condensate. This finding clarified the operational picture for the first well, allowing the Operator to confidently adjust their liquid management and production strategy.
  • Path Forward: While time limits imposed by the Normally Unmanned Installation (NUI) restricted the sample volume from the second well, the successful execution of the sampling process has led the Operator to immediately begin planning a Phase II campaign to revisit the NUI and complete the full liquid composition analysis.
    •  Proserv’s PhaseCatcher successfully enabled safe, regulatory-compliant, high-pressure sampling, providing the operator with the essential data required to de-risk production decisions.

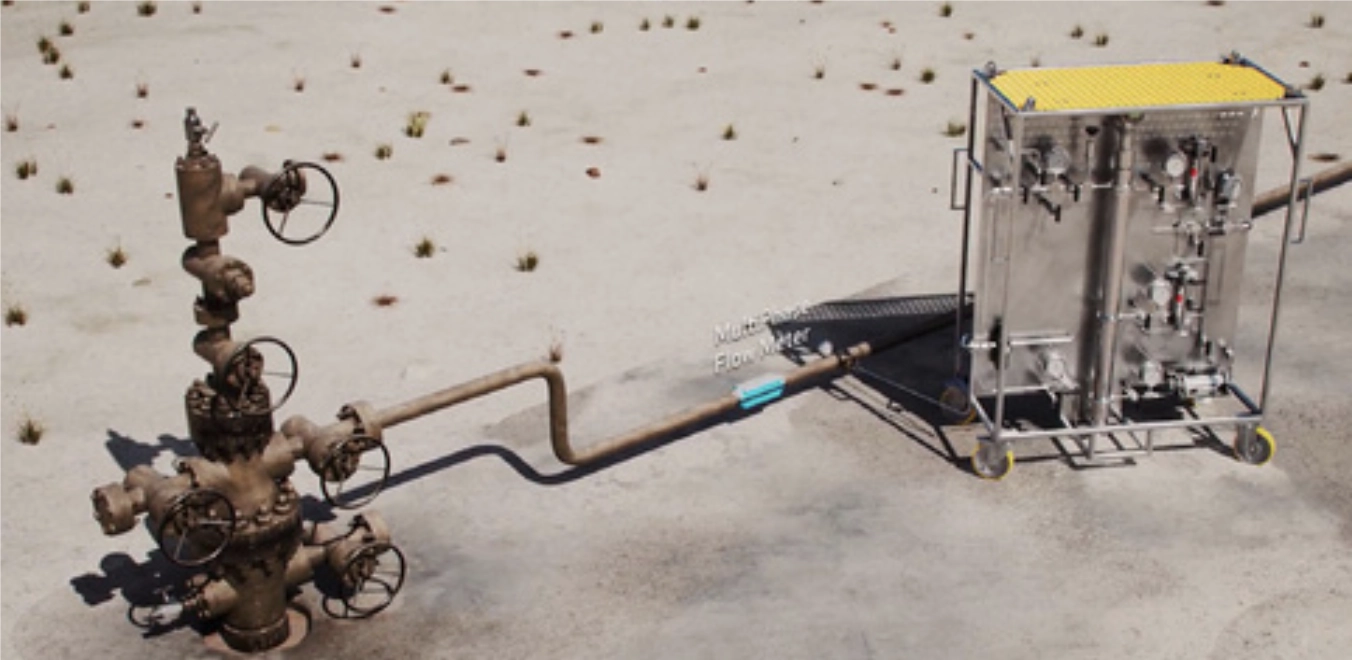

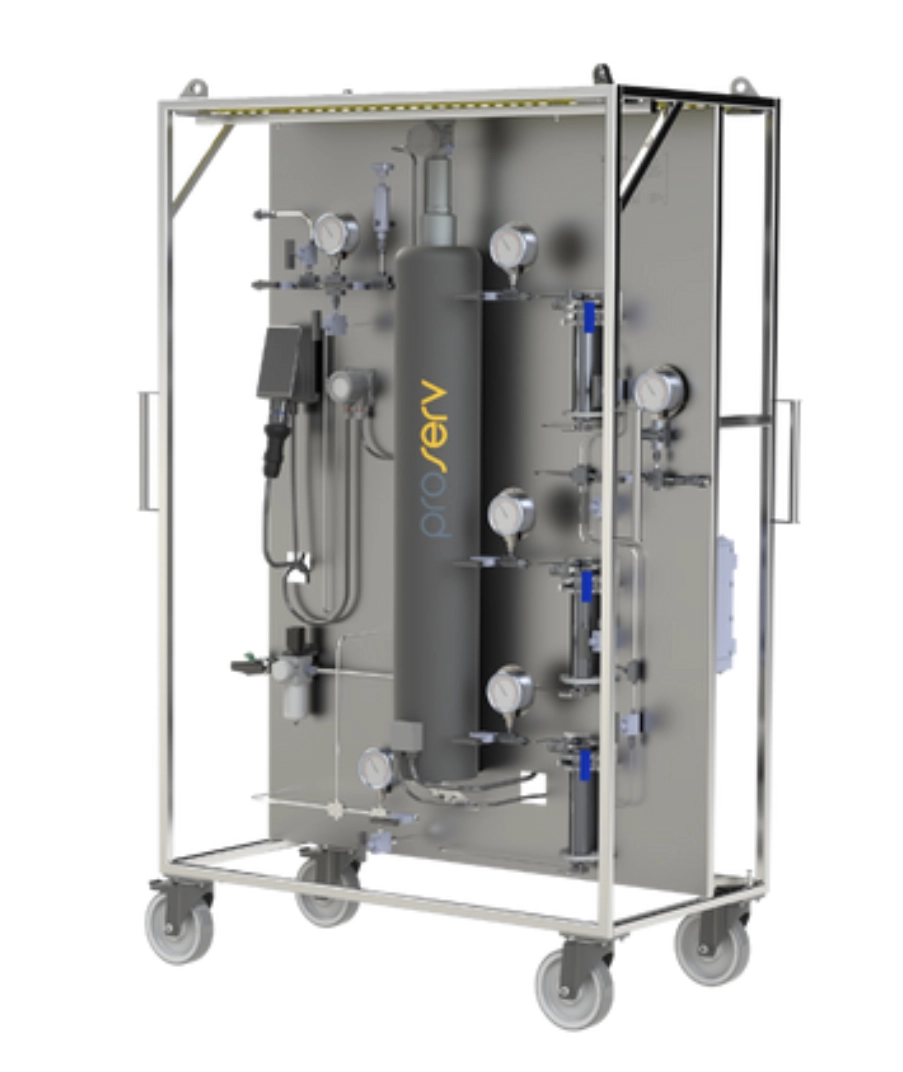

    PhaseCatcher Field Trial Summary Recently, the patent granted Proserv PhaseCatcher System was approved for use through the TTR Initiation Approval Process, TR-2024-0018 Part 1.
    Read more
    'Field trial for closed-loop multiphase sampling' Case Study: PhaseCatcher Field Trial Company National Operator Equipment PhaseCatcher Multiphase Sampling Solution Project Background Recently, the patent granted Proserv PhaseCatcher System was approved for use through the TTR Initiation Approval Process, TR-2024-0018 Part 1. This allowed Proserv to proceed to field trial with its portable, Multi-Phase Closed-Loop sampling technology to safely demonstrate the capture of non-pressurised liquids from the flowline without releasing toxic fluids to atmosphere. The Challenge The client required a solution for collecting liquid samples from onshore producer wells. Samples needed to be depressurised to atmospheric pressure for lab transfer, without releasing any hydrocarbons/gas into the atmosphere. Additionally, the system had to be H2S resistant. The Solution Proserv deployed the 4-litre Inconel PhaseCatcher sampling unit, connecting to the 3 o’clock position on a multiphase flowline downstream of the choke. The system incorporated:
  • A backpressure floating piston cylinder to maintain sample pressure and enable fluid displacement
  • 3 sub-sample ports for phase extraction into a secondary piston cylinder
  • Guided Wave Radar (GWR) technology to identify individual phase volumes of gas, oil, and water
    •  Using PVT laws, the gas sample was depressurised by doubling its volume in a secondary cylinder, then displaced back to the process using piston technology. Despite operational interruptions preventing full volume collection, the trial demonstrated system safety and performance. A repeat trial is planned. The unit is NACE-compliant, made from exotic alloys suitable for high-H2S environments. Objective Collect liquid samples under flowing conditions for MPFM referencing, geochem, and BS&W analysis using the PhaseCatcher System. Safety Requirements
  • Operator rep must be present throughout
  • STOP WORK authority applies to all personnel
  • Pre-job safety meeting and hazard review mandatory
  • All safety equipment (fire extinguishers, SCBA, first aid, detectors) must be available
  • Job Safety Analysis form must be signed before starting
  • All tools must withstand required pressures
    •  Notes
  • Closed-loop system reinjects gas, avoiding flaring or venting
  • Sampling point must be at 3 or 9 o’clock downstream
  • Well must be flowing at stable pressure before sampling
    •  Equipment & Personnel Requirements
  • PhaseCatcher device and hoses
  • Portable or fixed H2S gas detectors
  • All personal protective gear
  • Work Permit Receiver
  • Minimum two operators
    •  Operational Highlights
  • Rig up and connect PhaseCatcher as per procedure
  • Perform sample inlet pressure test using N2 and observe system integrity
  • Flush sample lines to ensure clean, representative sample
  • Fill PhaseCatcher with sample; observe phase separation via GWR
  • Use secondary cylinder to degas sample to atmospheric pressure
  • Collect depressurised liquid at NV12; repeat if needed
  • Return remaining sample to process and purge with N2
  • Rig down equipment and restore site cleanliness
    •
