THE problem with Traditional monitoring methodsAre you counting the cost of cable and termination failures on your wind farm?Subsea cable and termination faults amount to one of the biggest hurdles to the successful future growth of offshore wind.These faults are common, but they can take a lot of time to fix. ORE Catapult data shows that they are responsible for 75-80% of the total cost of offshore wind insurance claims. Compounded over the 30 year life of the wind farm, the potential liability could spiral to £25m for inter-array cables and £292m for export cables* - and that’s not including lost power generation. The issue is that traditional monitoring methods, such as ROV inspections or isolated sensors will not help to mitigate these costs, as they are reactive and can only offer an isolated view of an individual fault. Worst still, standard inspections can miss crucial faults on joints and terminations, and any warning signals that a problem has occured comes too late. Cable failures remain the single largest operational cost in offshore wind. Most power cable faults can be traced back to issues with terminations, where jointing and earthing can be vulnerable to degradation over time. Monitoring sheath currents and temperatures in these terminations and screen connections provides earlier and economical failure warnings for every termination on any windfarm in one, retfrofittable online monitoring system. TerminationDe-burialStrainVessel impact/interactionFree spanningScouring
ProservECG™ Holistic Cable Infrastructure Management System
An online, synchronous cable monitoring systemECG™ Holistic Cable Infrastructure Management System introduces a step-change in traditional monitoring methods, offering comprehensive visibility across cable assets. Adopting and integrated and scalable approach, ECG™ provides real-time analysis with insights through an intuitive user interface. Enabling proactive decision-making, improving utilisation and reducing OPEX costs, ECG™ delivers complete peace of mind, monitoring up to 90% of the most common failure modes. ECG™ can monitor the condition and performance of cable terminations, an aspect needing development in the offshore wind sector. ECG™ offers operators better visibility and understanding of the live condition of cable assets, empowering decision-making through the insights generated from data analysis, so alleviating the requirement for physical O&M inspections and the CO2 footprint of unnecessary journeys. Optimise, predict and protect

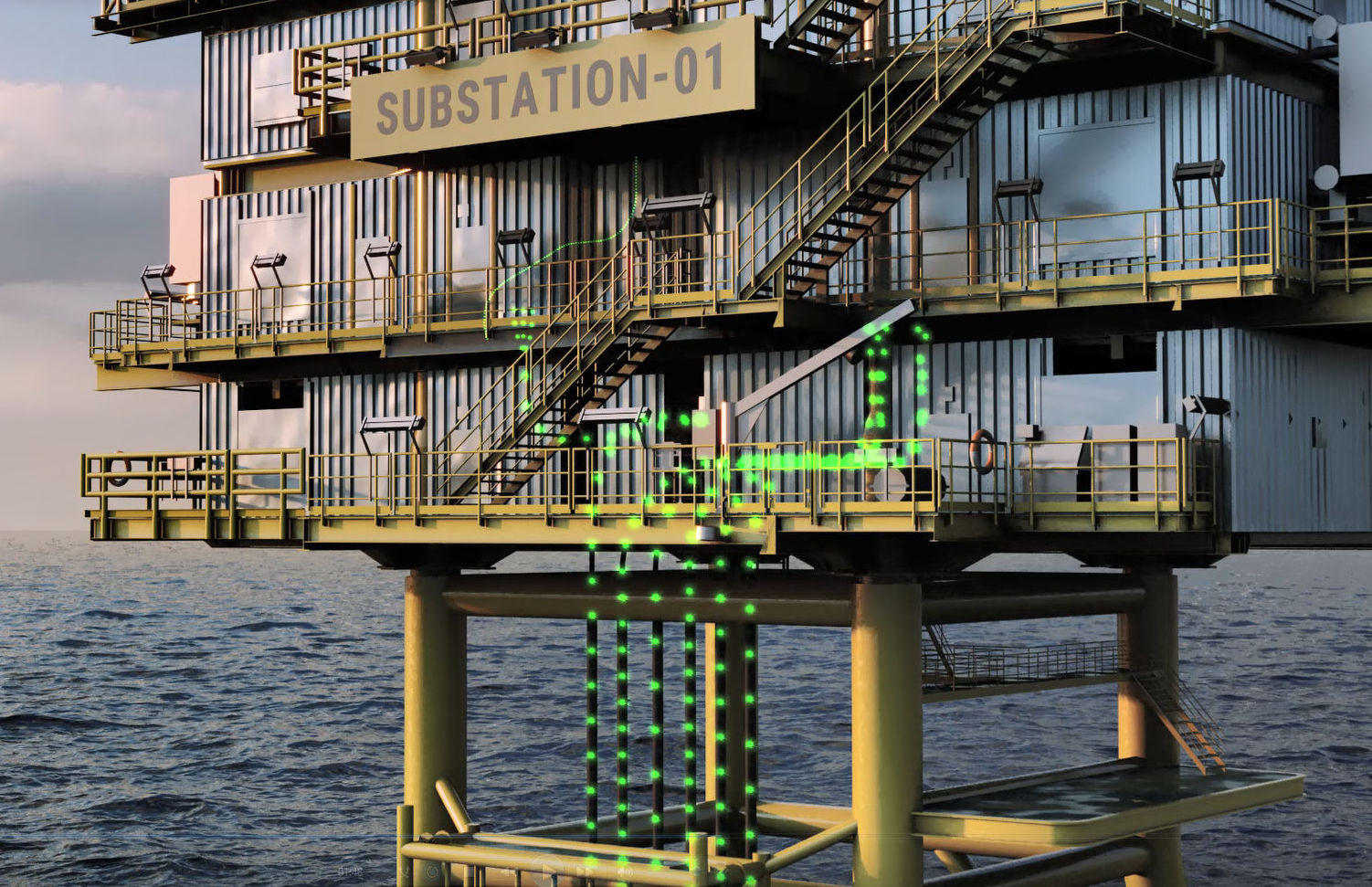

ECG™ Holistic Cable Infrastructure Management SystemECG™ Holistic Cable Infrastructure Management SystemSCALABLE FAULT DETECTION THROUGHOUT THE WIND FARMECG™, fully engaged and applied will detect emerging faults in cable performance, even within normal operating boundaries, potentially indicating future issues requiring remedial action to alleviate the likelihood of failures from occurring. The technology can be retrofitted to existing systems combining all historical data within the new solution, making it entirely flexible and scalable, while it is equally applicable to both fixed bottom and floating wind structures. Learn more about ECG™
the ECG™ systemPROTECT YOUR CABLES AND STOP FAULTS FROM OCCURRING

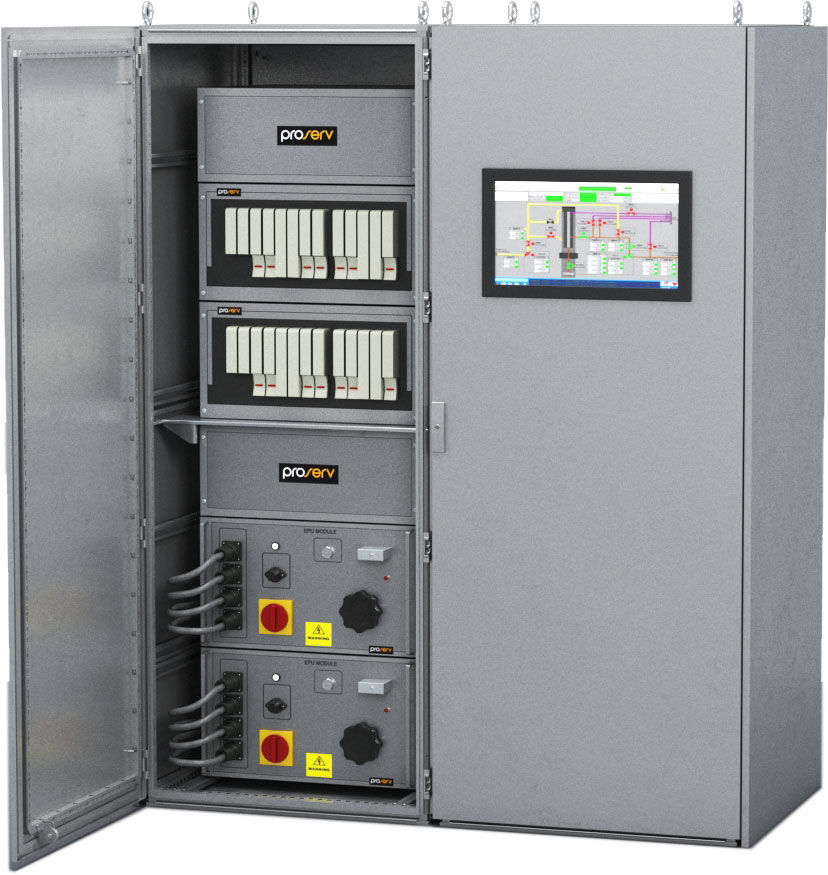

Interrogators are the core component in our ECG™ Holistic Cable Infrastructure Management System, centrally gathering, time-stamping and publishing synchronous data from every passive sensor and providing actionable commands and alarms to auxiliary equipment.
Maximise power transmission and increase efficiencies
Reduce failures as a result of intelligent monitoring
Protect against serious events with warnings of developing faults
Save OPEX and vessel costs with planned intervention
Plan lower cost interventions around weather and resource availability
Peace of mind about the condition and integrity of your cable
Our cost effective services bypass lengthy consultancy work by adding value to the data you are already collecting with advanced analytics
and human expertise.
ECG™ Technical Capabilities Data SourcesIEC 61850 complient DESData TransmissionProtocol standardisationData TransferSecure data gatewayData AcessIntuitive HMI user interfaceData OutcomesML predictive analysisData EmpowermentIdentify potential causes
ECG™ Holistic Cable Infrastructure Management System Sensing TechnologiesECG™ not only employs distributed temperature sensing (DTS) and distributed acoustic sensing (DAS) but engages Synaptec’s unique distributed electromechanical sensors (DES), via its passive electrical and mechanical sensor systems. The hardware will be complemented by the intuitive human-machine interface, utilising Proserv’s TIACS software suite. Read more

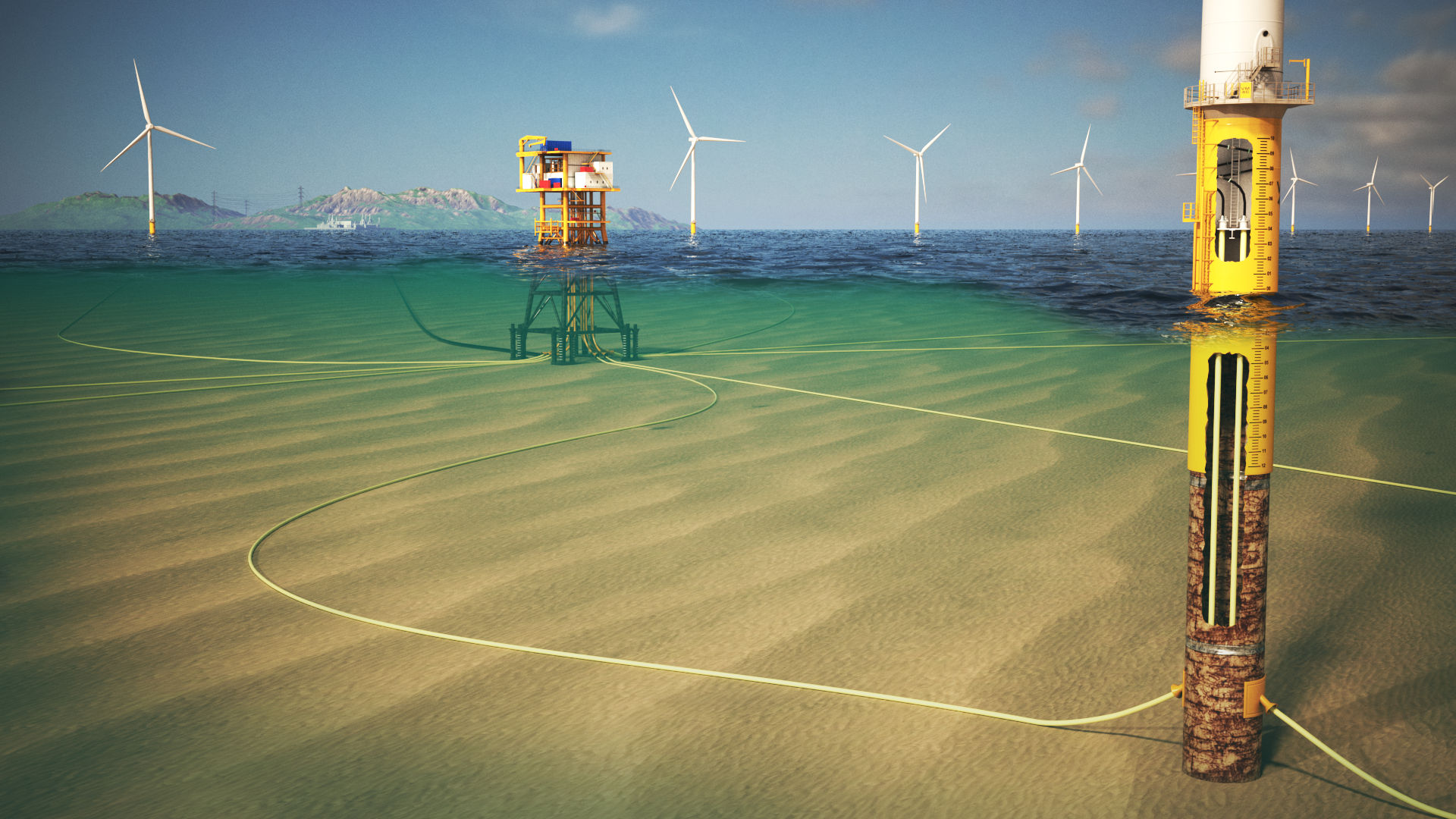

Technologies integrated within ECG™ Seamless integration of best-in-class optical sensing techniquesUsing unique Distributed Electromechanical Sensing (DES) technology, just one optical fiber per string is required to measure current and temperature at all wind turbines. The solution does not require power supplies, telecoms, or time clocks at any measurement location, so installation takes as little as 30 minutes per sensor and does not require
any live electrical work. Current measurements are IEC 60044/61869 compliant. Temperature measurements are accurate to within 0.1°C and have a spatial resolution of 2 cm, allowing the temperature of individual components to be precisely and discretely monitored. All data – electrical and thermal – are precisely timestamped by the Interrogator for analysis on fault precursors and trends. DTSDistributed Temperature Sensing
Hot spots

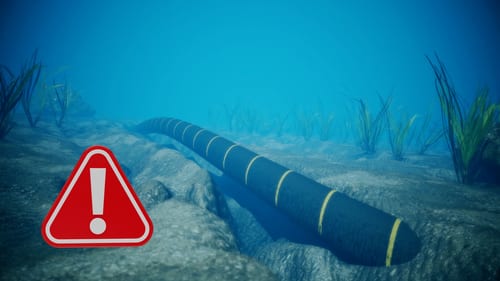

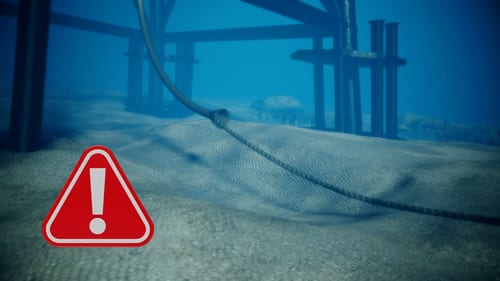

Depth of burial
Real time thermal rating (RTTR) for cables
DESDistributed Electrical Sensing

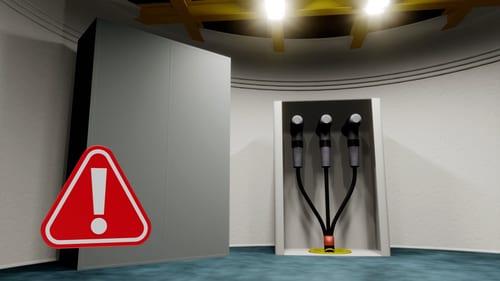

Termination monitoring

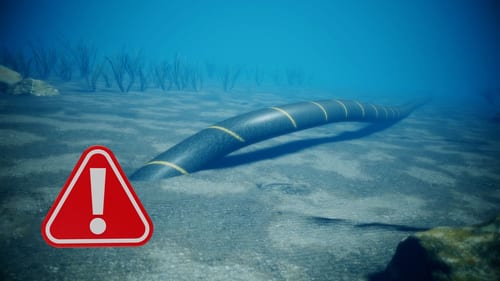

Earlier failure warnings from electrical and mechanical stresses
RTTR for terminations
Fault location and categorisation (for terminations and cable)
DASDistributed Acoustic Sensing

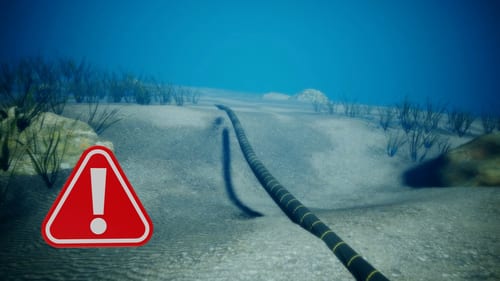

Detects cable mobility
Degradation of CPS
Vortex induced vibration (eddy development)

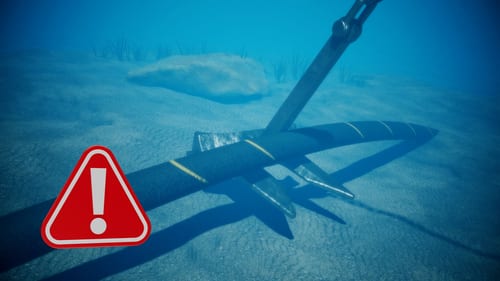

Correlates vessel incursion and anchor drag
Scalable cable fault detection throughout a wind farm with ECG™ Holistic Cable Infrastructure Management System Technology
Maximise operations with cable assuranceECG™ advanced sensor technologies delivers real-time data on the condition and integrity of your cable, allowing an operator to see a snapshot of the cable’s health. However, beyond that, the real value of gathering this data is trend analysis over time. At Proserv, we believe in open data, and ECG™ seamless hardware integration provides access to every single point of cable data, present and historic, in your windfarm. But in a time-poor, data-rich operating environment, who has the time to sit down and analyse these huge volumes of data to identify any potential problems?In the past, the only way to deliver cable assurance services would be by using a cable consultancy service. Consultants would package up data from numerous sources, analyse and report back, offering recommendations. This labour-intensive process would take place even if the cable was operating under normal parameters. What’s more, with no real-time visualisation, any anomalies could be out of date by the time the report is delivered. Our services remove the need for lengthy analysis simply to confirm ‘business as usual’. Our cost-effective automated reporting delivers regular cable intelligence in a timely manner, with a detailed summary of any out of normal events and their potential impact on cable and termination health. With Proserv’s cable assurance services, we add value to the data you are already collecting. From this, our cable experts can deliver a human intelligence report that looks at each cable and termination in detail to identify fatigue over time, providing informed recommendations on cable risks and their potential impact on operations, and even offer predictions on cable life. By using data intelligence, our data experts can pick up on potential failures and provide recommendations much faster than the traditional consultancy approach. This powerful mix of AI and human expertise puts the decision-making power back into the hands of the operators, who can make a fully informed maintenance strategy for their cables, maximising operational life. Our cable assurance services are sensor agnostic and can plug into any existing sensor hardware. The algorithm can crunch the numbers from any sensor the operator specifies - be those recommended ny our ECG™ experts, or any other OEM sensor technology, allowing for full flexibility, as well as the ability to retrofit the software onto an existing windfarm.

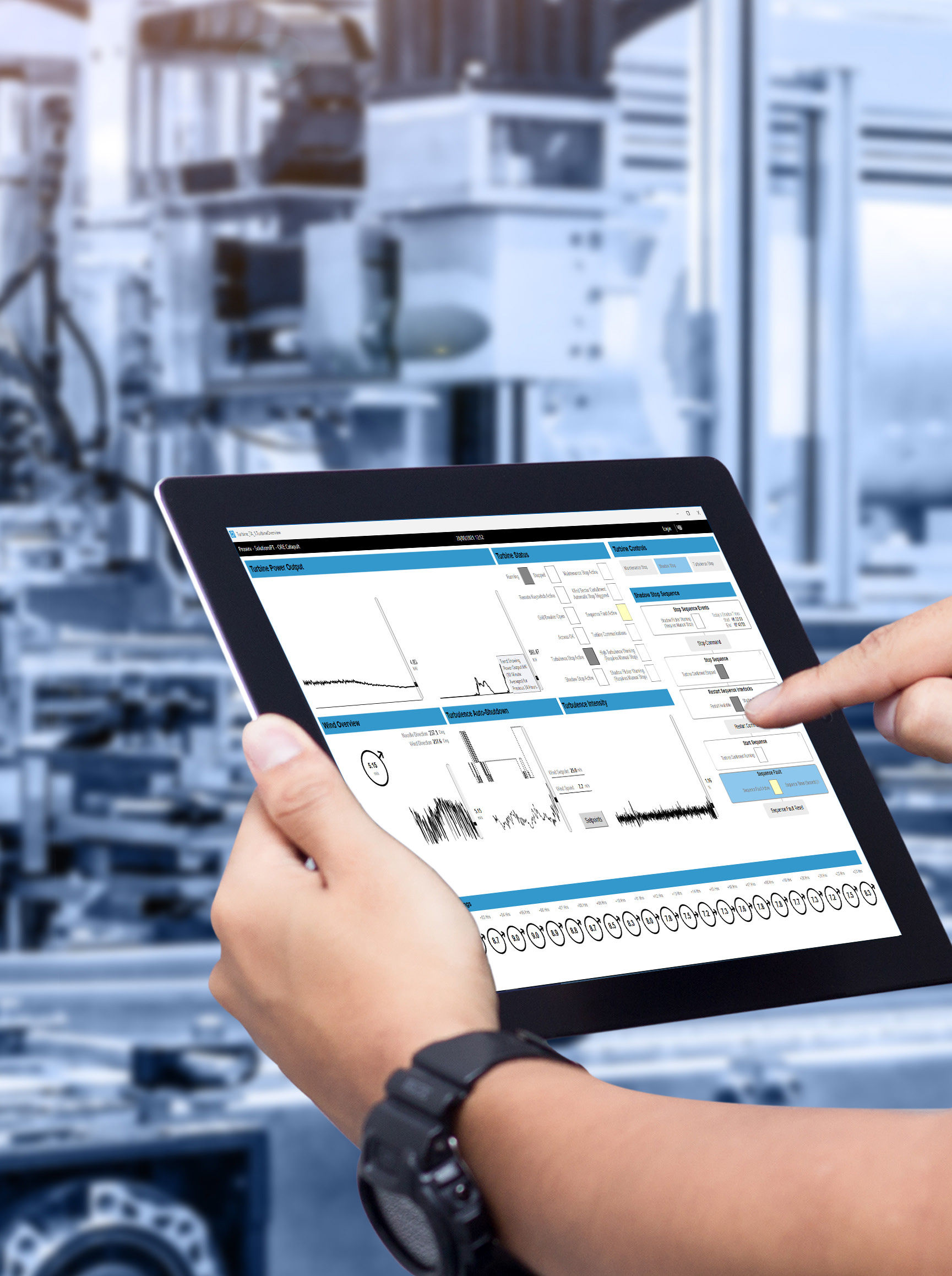

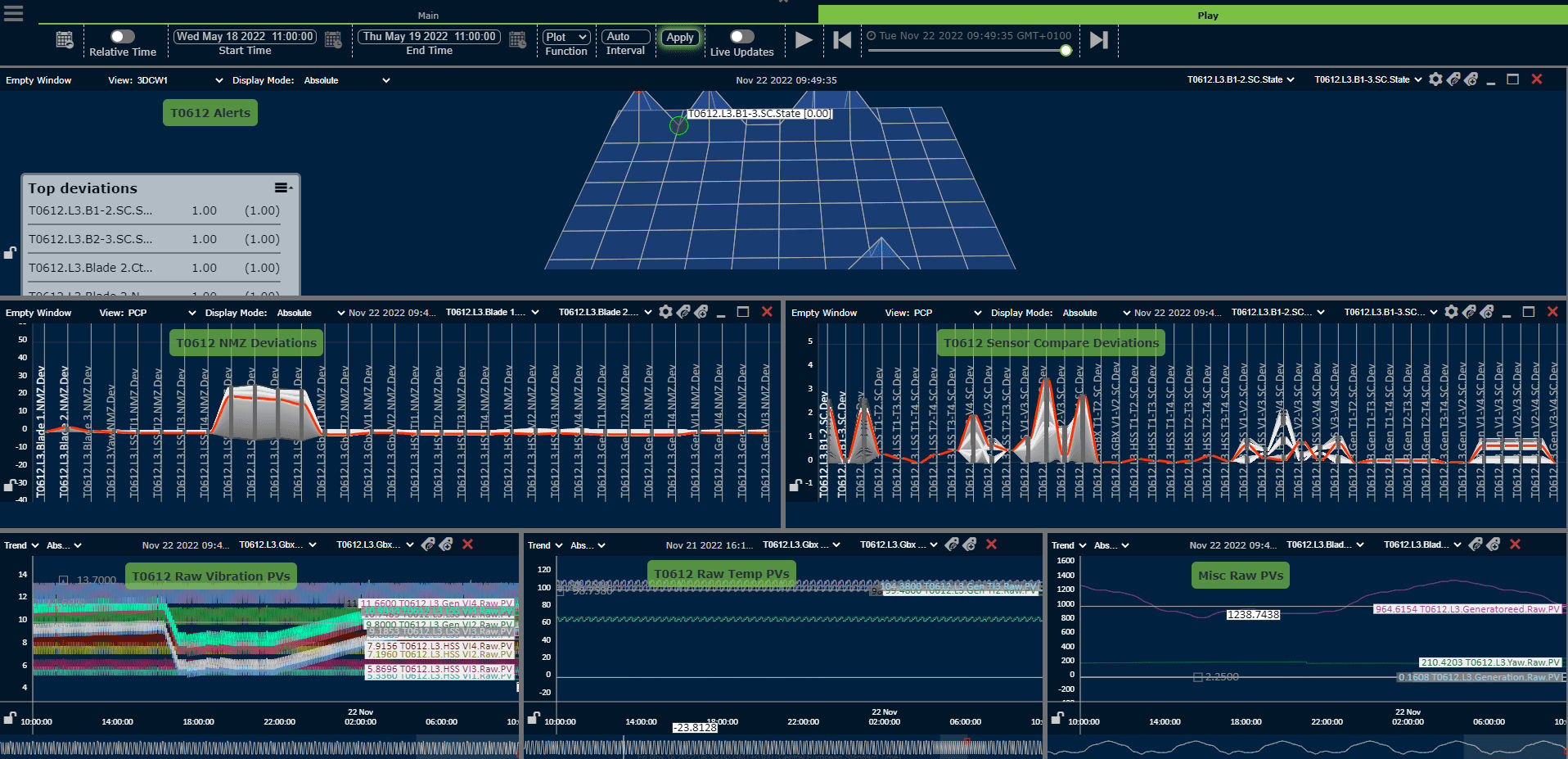

ECG™ TIACS software suiteTIACS Cable Monitoring dashboardINTUITIVE VISUALISATION FOR EASY INSIGHTS AND ACTIONTraditional HMIs prioritise the visualisation of equipment over the visualisation of data. As a result, they cannot cope with today’s growth in data.ECG™ data analytics suite delivers an intuitive interface that delivers optimisation in human performance.
Continuous automated data analysis
Scheduled reporting
Predictive events highlighted

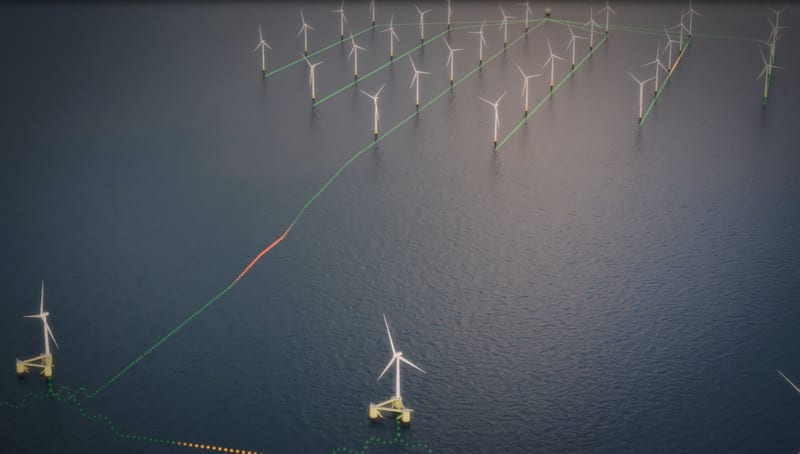

Wind farm level visualisation
Identify warnings, events and impacts
Holistic view
Real-time data
TIACS storage presentation
ECG™ after sales
service
Proserv’s approach to after sales is focused on delivering the same peace of mind that our technology provides. From installation support to training and engineering services, we will be on hand every step of the way from product sale through to system support and consultancy. InstallationProserv can install your ECG™ Holistic Cable Infrastructure Management System, maintaining
continuity and avoiding conflict over
areas of responsibility with regard to
warranty.
Pre-CommissioningFollowing on from installation, Proserv’s engineers and technicians will perform this vital function and provide specialist advice.CommissioningProserv’s commissioning engineers are available for ECG™ system start-up, ensuring continuity of personnel through to completion of the system integration and the start of cable monitoring.Workshop FacilitiesProserv has comprehensive workshop facilities in Houston, Great Yarmouth, Aberdeen, Glasgow, Dubai, Abu Dhabi, Damman, Qatar, Stavanger and Trondheim, which are fully equipped for project delivery and service response.Engineering ServicesProserv’s engineering support comes as standard, inclusive in all supply and service contracts, covering:
Detailed design work
Feasibility studies
System design analysis
Modification costing and proposals
Drafting services
Project management
ConsultancyProserv offers comprehensive consultancy services to support the ECG™ system.
TrainingProserv can deliver training on all aspects of the ECG™ system to ensure customers gain the maximum benefit and understanding of its monitoring and predictive technologies. Support 24/7During office hours, specialist engineers are available to help with queries. Out-of-hours requirements are received and actioned by on-call staff.WarrantyUnless agreed otherwise, all items supplied by Proserv will be fully guaranteed to be free from defect in design, materials and workmanship for a period of 12 months from commissioning, or 18 months from the date of shipment from our works, whichever is sooner.Warranty terms are subject to the equipment being stored, handled, installed, commissioned, operated and maintained in accordance with our procedures. Failure to comply with the above requirements could affect your warranty.Extended WarrantyExtended Warranty Service Plans are available for selected products, including operation and maintenance training for site technicians, for all supplied equipment, and regular inspection and health care visits.
A technology partnership that empowers innovationProserv partners with complementary, emerging technology companies to create compelling solutions for customers. These relationships enable Proserv to be at the forefront of technology advancement as we continue to identify innovative ways to create value for our customers throughout the energy transition.Read more
A technology partnership that empowers innovationAs part of a technology consortium alongside Synaptec, a power system monitoring expert, and BPP Cables Solutions, specialists in subsea power cable engineering and management, leading the development of a holistic cable monitoring system as a major step-change to traditional methods. The technology has been initiated and driven by Proserv with vital support from its consortium partners. Offshore Renewable Energy (ORE) Catapult and Innovate UK have also given its support to the group during the development of the solution.ECG™ is a direct response to market needs. It enables anomalies in cable performance to be detected before faults occur. Benefitting from industrial sponsorship from ScottishPower Renewables and Equinor, the technology incorporates multiple parameters such as distributed temperature, acoustic and also electromechanical sensing (via Synaptec’s unique passive electrical and mechanical sensor systems), with synchronous, real-time monitoring across multiple assets, and continuous automated data analysis.
Case Studies
Dogger Bank offshore wind farm subsea cable monitoringProserv is deploying its new, disruptive ECG™ Holistic Cable Infrastructure Management System on phases A and B of Dogger Bank Wind Farm.
Read more
Case Study:Offshore wind farm Subsea cable monitoringBackgroundProserv is deploying its new, disruptive ECG™ Holistic Cable Infrastructure Management System on phases A and B of Dogger Bank Wind Farm.
Optimise assets - maximise power transmission and
increase inefficiencies
Save OPEX and vessel costs and vessel costs with
planned intervention and plan lower cost interventions
around weather and resource availability
Reduce failures and protect against serious events
with warnings of developing
Dogger Bank: The largest offshore wind farm in the worldDogger Bank Wind Farm is located more than 130km off the north-east coast of England and is being delivered by joint venture partners SSE Renewables, Equinor and Eni. SSE Renewables is leading on construction and delivery while Equinor will operate the wind farm on completion. Due to its size and scale, the farm is being built in three consecutive 1.2GW phases; Dogger Bank A, B and C.
In total the wind farm is expected to generate enough renewable electricity to supply 5% of the UK’s demand, equivalent to powering six million homes.A new, disruptive solutionProserv will harness its new, disruptive ECG™ holistic cable monitoring system to deliver this project. ECG represents a step-change in traditional monitoring methods, offering comprehensive visibility across cable assets. Adopting an integrated and scalable approach, it provides real-time analysis with insights through an intuitive user interface. By using intelligence from all data across an asset, the system is capable of enabling proactive and predictive decision-making, improved utilisation of resources and reduced operational expenditure (OPEX).Project execution from Great YarmouthProserv’s Great Yarmouth Centre of Excellence team will be executing the full scope of supply, with both Dogger Bank A and B systems scheduled to be ready for dispatch in Q3 2022. The extent of the scope of supply will include a cable monitoring system solution for each phase, integrating applicable sensor interrogator technology. The hardware will be complemented by Proserv’s innovative HMI design philosophy, utilising Proserv’s TIACS software suite.Endorsed by Equinor“In another world first for the project, we’re looking forward to using this high-tech system to support us in optimising our assets during the operational phase. With vast experience in the oil and gas sector, Proserv are now translating their subsea experience into solutions for offshore wind. We’re excited to be supporting them on this journey as their first ECG customer, and we look forward to working with them, alongside DEME, as we continue to build this innovative and world-class wind farm.”
Hywind Scotland floating offshore wind farm subsea cable intelligenceProserv is to deliver its cable monitoring system (CMS)
to analyse the condition, integrity, and performance of export and inter-array cables across Hywind Scotland's floating offshore wind farm
Read more

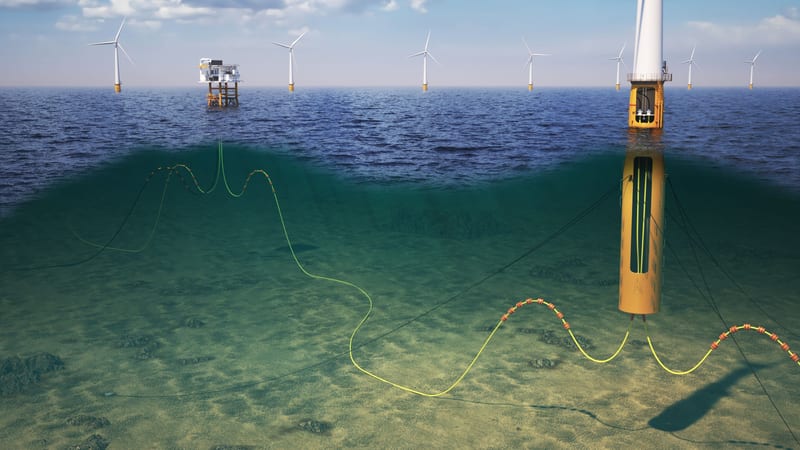

Case Study:Subsea cable intelligence: Hywind Scotland floating offshore wind farmBackgroundProserv is to deliver its cable monitoring system (CMS) to analyse the condition, integrity, and performance of export and inter-array cables across the wind farm using the fibre optic infrastructure within subsea HV cables. The demonstration, focused on ECG™’s data analytics abilities, will be installed, commissioned and operational in Q1 of 2023.
30 MW installed capacity in a pilot park covering 4 sq km
95-120m 5 spar style wind turbines at a water depth of up to 12m
The world’s first commercial floating offshore wind farmLocated off the coast of Peterhead, Aberdeenshire in north-east Scotland, Hywind Scotland is the world’s first commercial floating offshore wind farm. Since the wind farm began production in October 2017, Equinor has revealed that Hywind Scotland has achieved the highest average capacity factor of all wind farms.Real-time data processing and predictive analytics modellingProserv ECG™ not only employs distributed temperature sensing (DTS) and distributed acoustic sensing (DAS) but engages Synaptec’s unique distributed electromechanical sensors (DES), via its passive electrical and mechanical sensor systems. The hardware will be complemented by Proserv’s innovative HMI design philosophy, utilising Proserv’s TIACS software suite.During ECG’s demonstration on Hywind Scotland, Proserv will deliver advanced real-time data processing and predictive analytics modelling. This will be achieved with vital support from technology partner and specialists in subsea power cable engineering and management, BPP Cable Solutions. The system’s specialist predictive data analysis tools will use known cable power transmission performance physics to monitor cable arrays continuously and autonomously. This will provide assurance of cable health and identify in advance any anomalies and potential longer-term faults that can be dealt with on a proactive basis.This approach represents a major shift from traditional reactive cable performance monitoring, whereby a cable fault or failure identification using stored data only occurs after an event takes place through retrospective root cause analysis.Monitoring the condition and performance of cable terminationsCritically, ECG can monitor the condition, integrity, and performance of cable terminations, an aspect needing development in the offshore wind sector. Cable terminations are well-known for being a serious failure point and so this technology solution will scrutinise this specific key area of an asset, not possible with traditional cable monitoring systems.
